5.21.7 TLP Header Properties Dialog
The TLP Header Properties dialog enables you to set the TLP Header Fields and Layout,
TLP Prefixes and Actions. You can manually change the Requester/Completer ID.

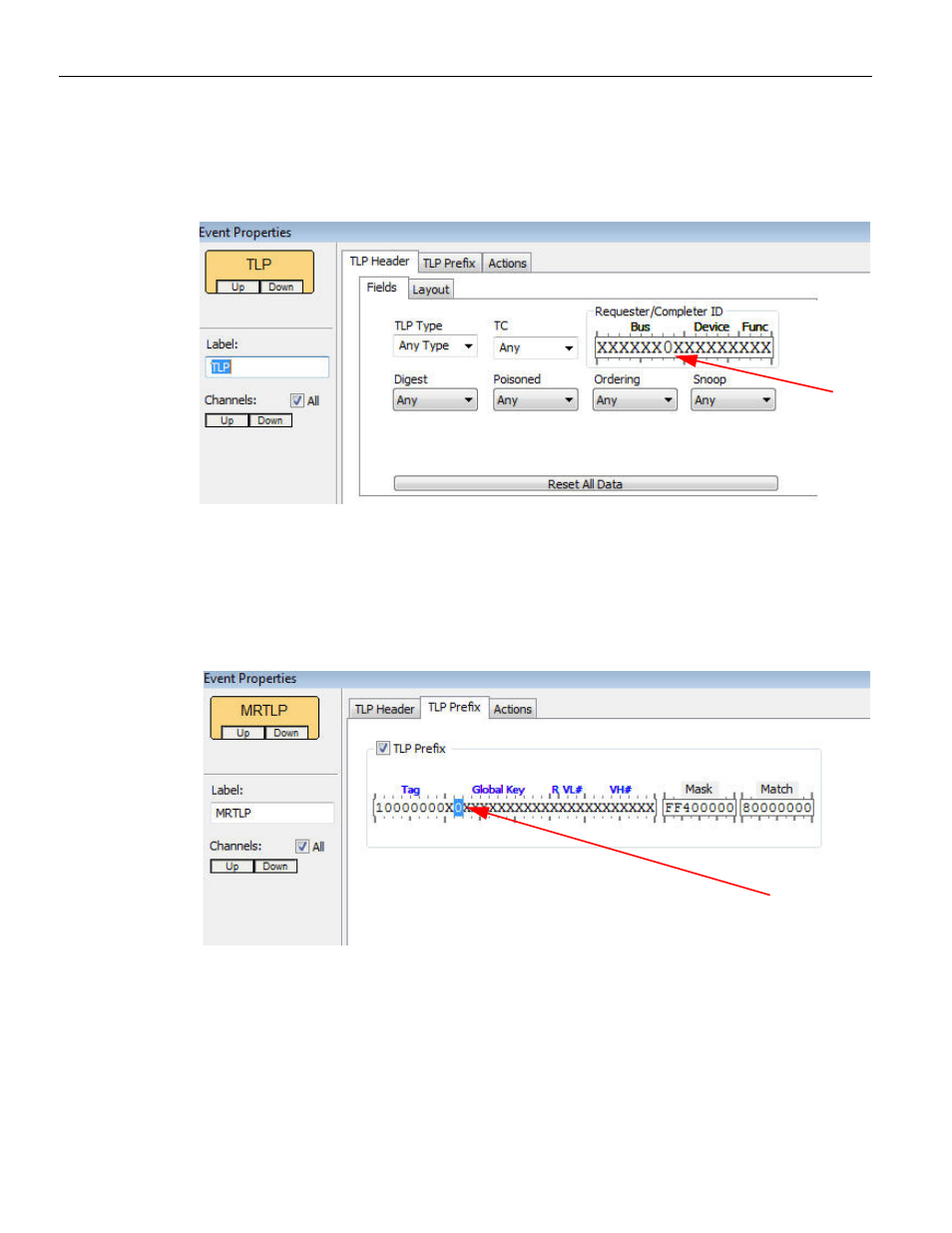

Figure 5.32: TLP Header Properties Dialog
5.21.8 TLP Prefix Properties Dialog
The Layout tab of the TLP Prefix Packet Properties dialog allows you to change the pattern
and customize it by defining each specific bit as shown in the figure below.
Figure 5.33: TLP Prefix Properties Dialog
