Summit T24 PCI Express Multi‐Lane Protocol Analyzer User Manual 135
Find Teledyne LeCroy

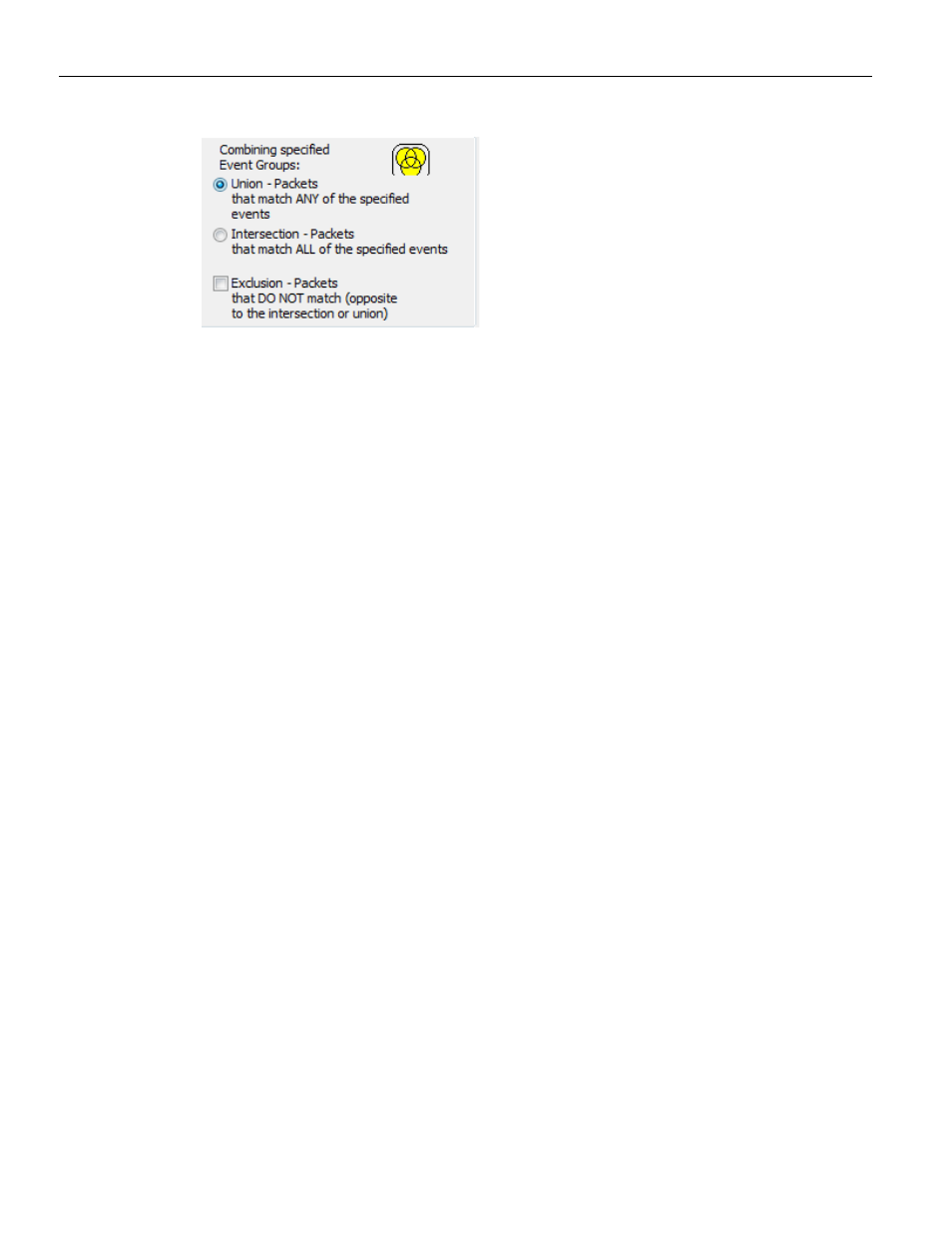

The options Union, Intersection, and Exclusion let you set conditions on your searches:
 Union: To search for any of the selected criteria.
Example: “Find packets with ANY of the following characteristics …”
 Intersection: To search for all of the selected criteria.
Example: “Find packets with ALL of the following characteristics …”
 Exclude: To exclude items from a search. This option works in conjunction with
Union and Intersection. You select Union and Exclude to exclude any of the spec‐
ified traffic. You select Intersection and Exclude to exclude all of the specified
traffic.
Example: “Exclude packets with ANY of the following …” or
“Exclude packets with ALL of the following …”
1. Repeat Steps 3 through 9 for additional display levels.
2. Find All displays all matching packets or transactions in a separate view.
3. Search in Hidden includes hidden packets or transactions in the search.
4. Click OK.
7.10.1 Event Groups
The Event Groups for Packets are:
 TLP Type
 TLP Header
 TLP Prefix
 TLP Requester ID
 TLP Completer ID
 TLP Data Pattern
 TLP Data Lengths
 TLP Traffic Class
 TLP Tag
 TLP Sequence Number
 DLLP Type
 DLLP Header
 DLLP Virtual Channel
 ACK/NAK Seq Number
 Ordered Sets
 Link Event
