Connection Procedure
To connect Summit T24 to the System Under Test (host platform/root complex):
1. Connect the pods to the Analyzer using the iPass x4 to x8 Straight cable .
2. Connect the flexible lead tips to the pods using the SSMP cables.
3. Connect the lead tips to the system under test by soldering to the trace.
3.7.3 Example: Connecting the Summit T24 Analyzer to the Device Under Test
Using a Gen2 Multi-lead Probe for x4
Components
 1 iPass x4 to x8 Straight cable for x4

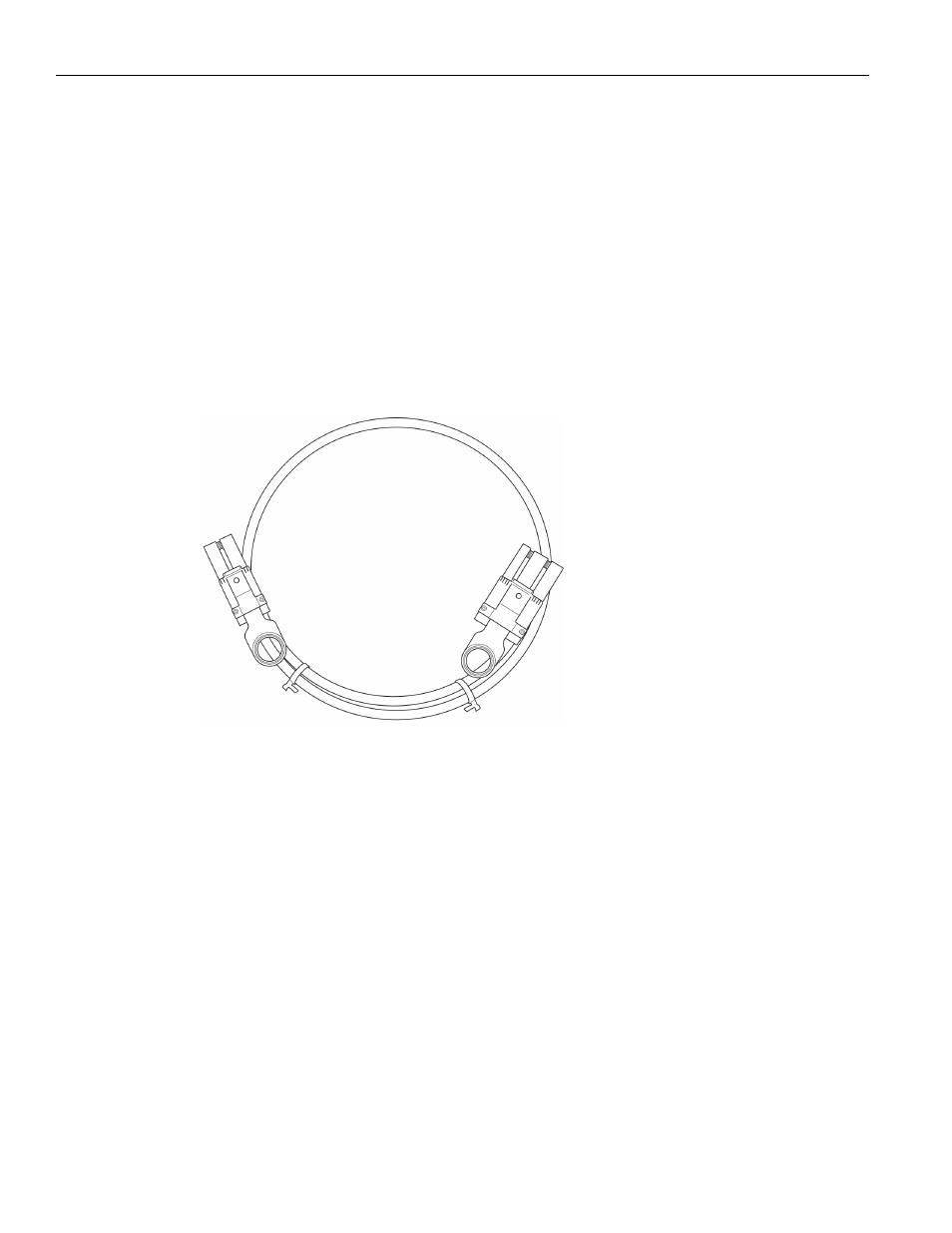

Figure 3.14: iPass x4 to x8 Straight cable
 2 Multi‐lead Probe pods for x4
(See
“1 Multi‐lead Probe Pod for x1 and x4” on page 15 ).
 Up to 16 MidBus Probe SSMP Cables, and up to 8 Flexible Leads, per pod.
(See
Figure 3.12 on page 15 ).
 1 Clock Cable ( see Figure 3.9 on page 13 ).
Connections Overview for Gen2 Multi-lead Probe
Use a 1‐pod setup.
For x4, use the straight iPass cable to connect the probe data connectors on the Analyzer
to the pod(s).
On the other side of the pod, connect the flexible lead tips.
Connection Procedure
To connect Summit T24 to the system under test (host platform/root complex):
1. Connect the pods to the Analyzer using the straight iPass cables.
