Summit T24 PCI Express Multi‐Lane Protocol Analyzer User Manual 205
PCIe SSD Base Address Mapping Teledyne LeCroy

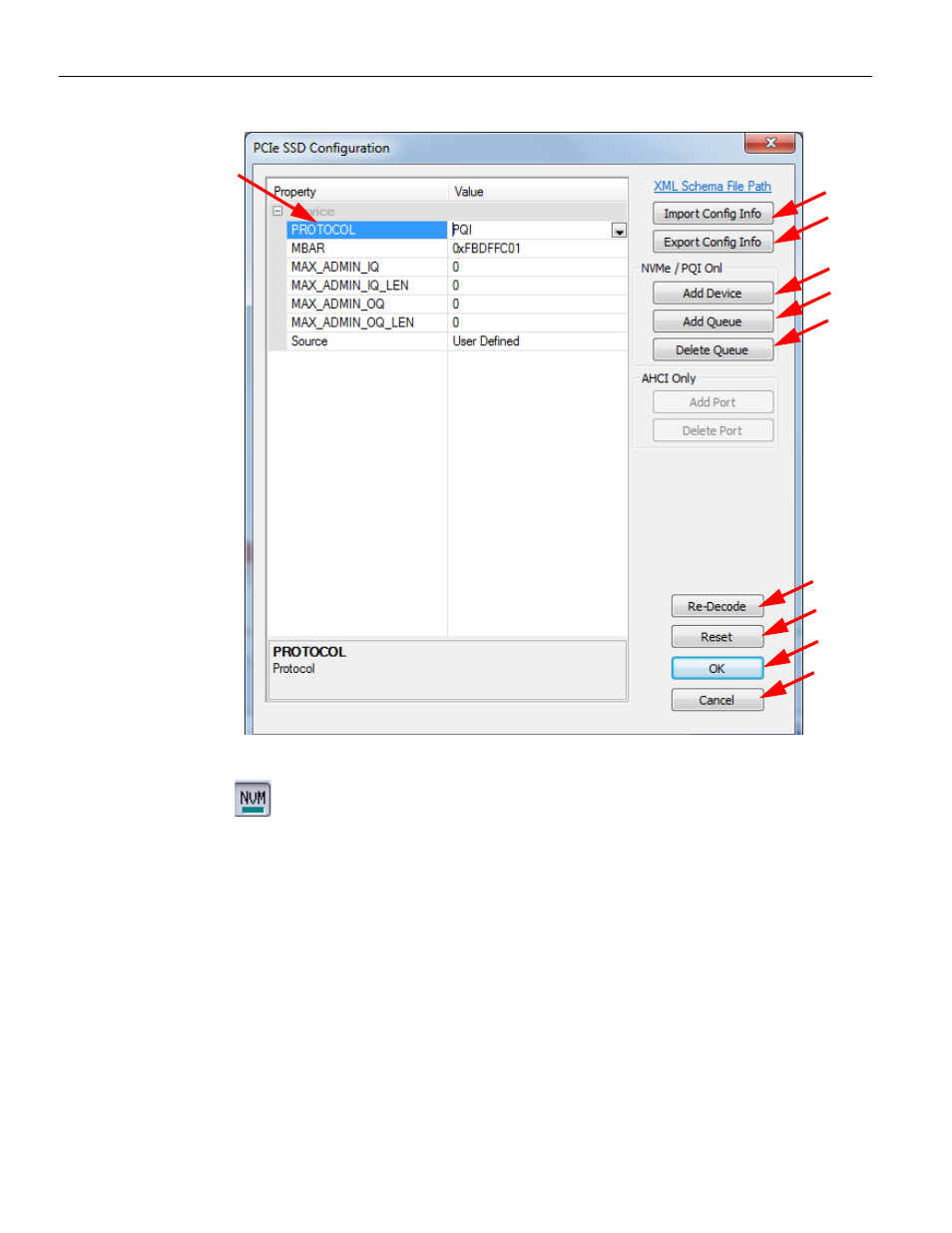

Figure 10.30: PCIe SSD Configuration Dialog Pre-decoding
Click button to decode the trace and select Tools > PCIe SSD Base Address Mapping
(see Figure 10.31 on page 206 ).
