Teledyne LeCroy Using the CATC Trace Navigator
184 Summit T24 PCI Express Multi‐Lane Protocol Analyzer User Manual

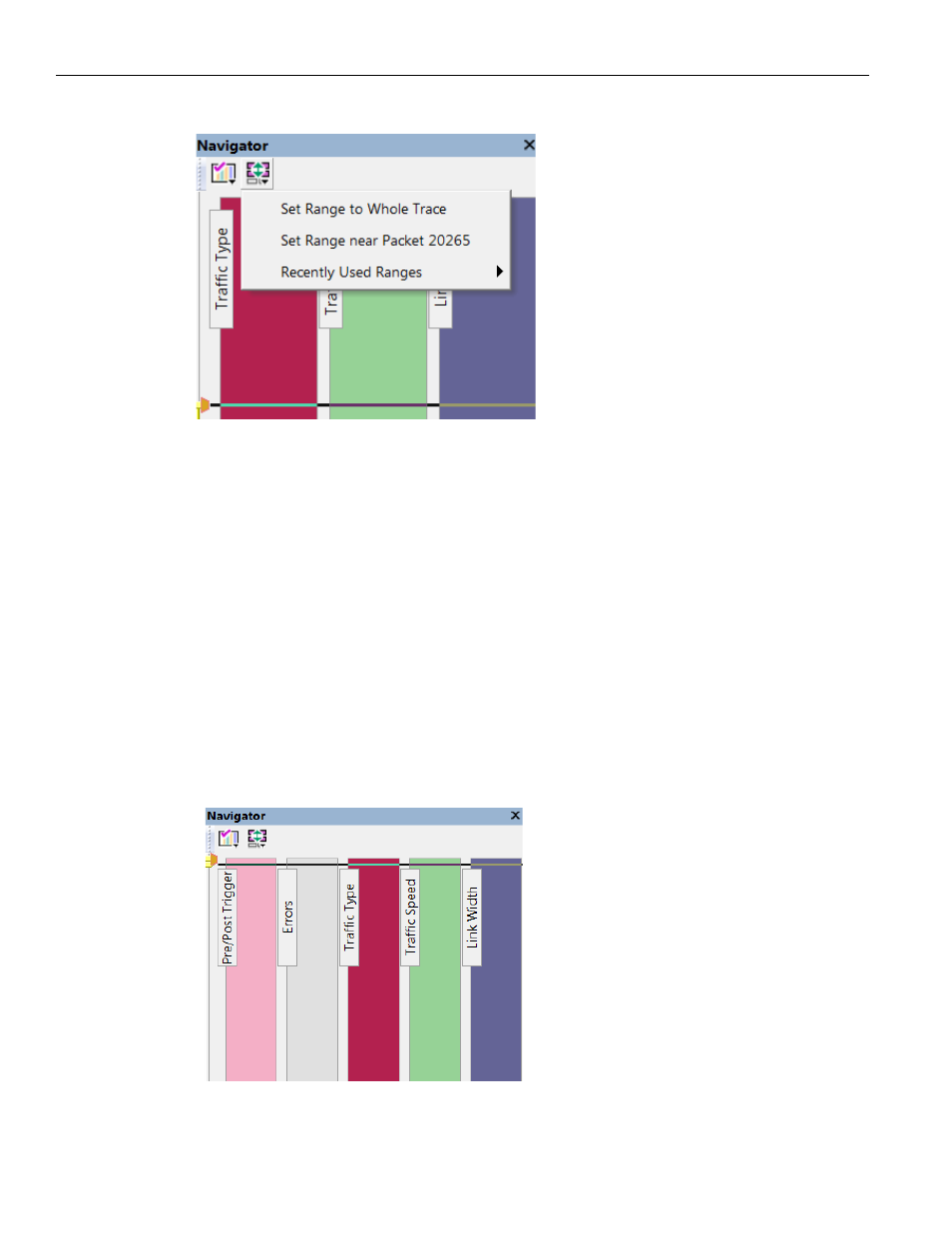

Figure 10.20: Navigator Range Dropdown Menu
The menu has the following options:
 Set Range to Whole Trace: Allows you to reset the range to include the entire
CATC Trace file contents. The top range delimiter is placed at the lowest packet
number in the CATC Trace. The bottom range delimiter is placed at the highest
packet number in the CATC Trace.
 Set Range Near Packet xxx: Allows you to collapse the range so that only the
packets immediately above and below the xxx packet are displayed. The xxx
packet is whatever packet is currently at the top in the CATC Trace display.
 Recently Used Ranges: Allows you to reset the range to any of a number of
recently used (previously set) ranges.
10.8.6 Navigator Panes
You can display any combination of CATC Trace Navigator panes.
From left to right, the panes are: Pre/Post Trigger, Errors, Traffic Type, Traffic Speed, and
Link Width. Each pane represents the entire CATC Trace with respect to different types of
