Teledyne LeCroy CATC Walk Playlist
130 Summit T24 PCI Express Multi‐Lane Protocol Analyzer User Manual

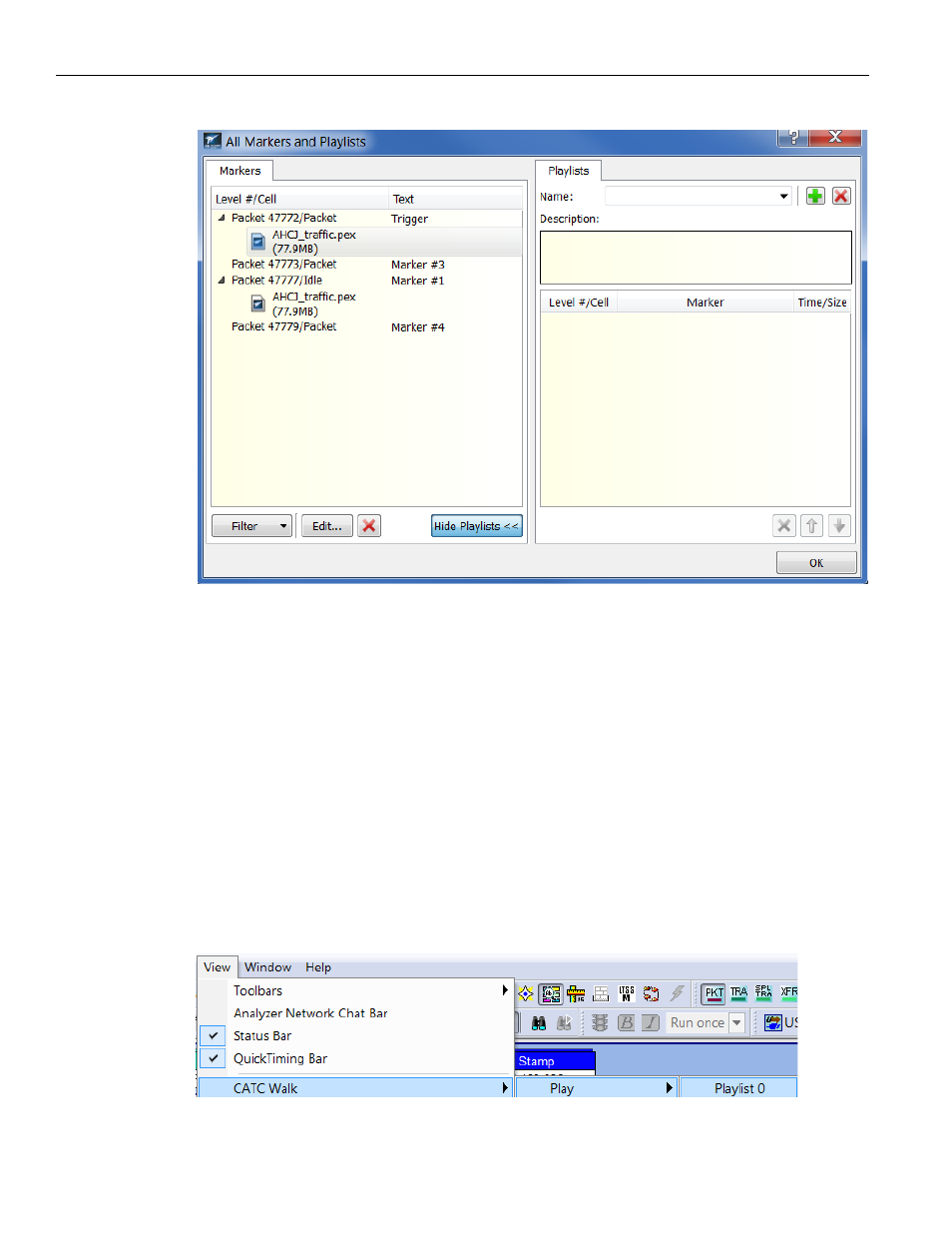

Figure 7.25: Edit CATC Walk Playlists Dialog
You can drag and drop and item or attachment from the Marker panel into the Playlist
panel and build a story. Give a description of the playlist in the Description field and you
can give a name to the playlist in the Name field.
You can add a new playlist by clicking on the green plus sign (
+
) on the right top corner of
the Playlist panel, or delete a playlist by clicking the red ( x ) button.
If you have more than one playlist saved click on the Name drop‐down arrow to select it.
The drop‐down menu lists all the available playlists
7.7.2 Playback Window
To playback a playlist, click on the View menu in the top toolbar of application, select
CATC Walk and then select Play > Playlist 1 as shown below.
Figure 7.26: View Dialog
