Show Header Fields
100
Summit T24 PCI Express Multi‐Lane Protocol Analyzer User Manual
6.7
Show Header Fields
You can view details about header fields by opening the Show Header Fields dialog.
1. Click a header. A pop‐up menu displays.
2. Select Show Header Fields. The following dialog opens.

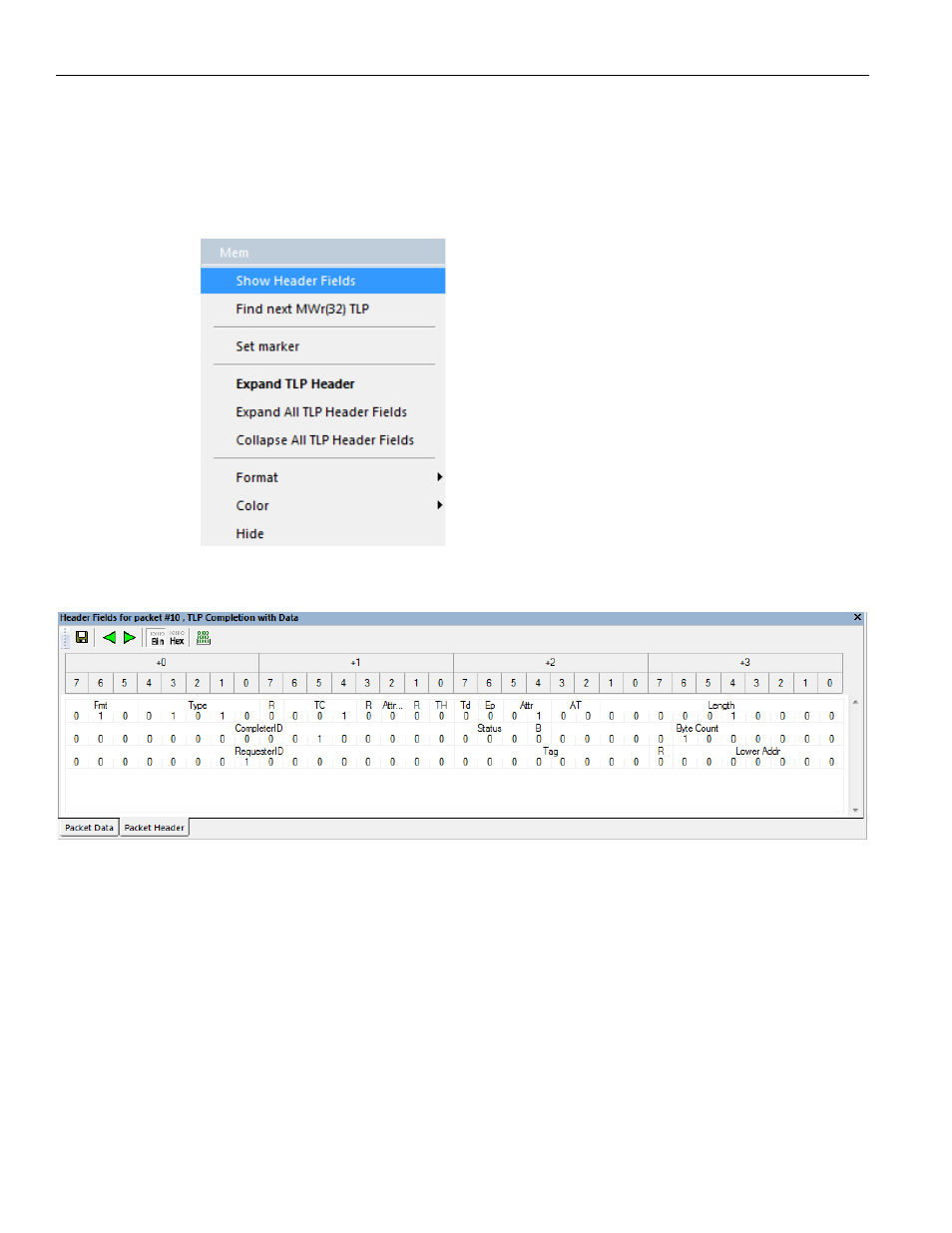

Figure 6.3: Viewing Packet Fields
3. Use the Prev and Next buttons to navigate to other headers.
