Summit T24 PCI Express Multi‐Lane Protocol Analyzer User Manual 37
Making a PCI Express Recording Teledyne LeCroy
4.9.4 Search Direction Indicator
The fourth segment in the status bar indicates search direction. The direction can be
changed by selecting Search Direction from the Search menu.
4.10 Making a PCI Express Recording
After connecting the Analyzer to the device(s), you must configure the Recording Options.
Then you can test the Analyzer by creating a 16‐MB snapshot recording.
To make this recording, follow these steps:
1. From the Setup menu, select Recording Options and click the Switch to Simple
Mode button.
2. Select the Simple Mode tab (see Figure 4.9 on page 37 ).
The following window displays the factory default settings in Simple Mode, such as
Snapshot and 16‐MB buffer size. For your first recording, select the proper speed
and link width.

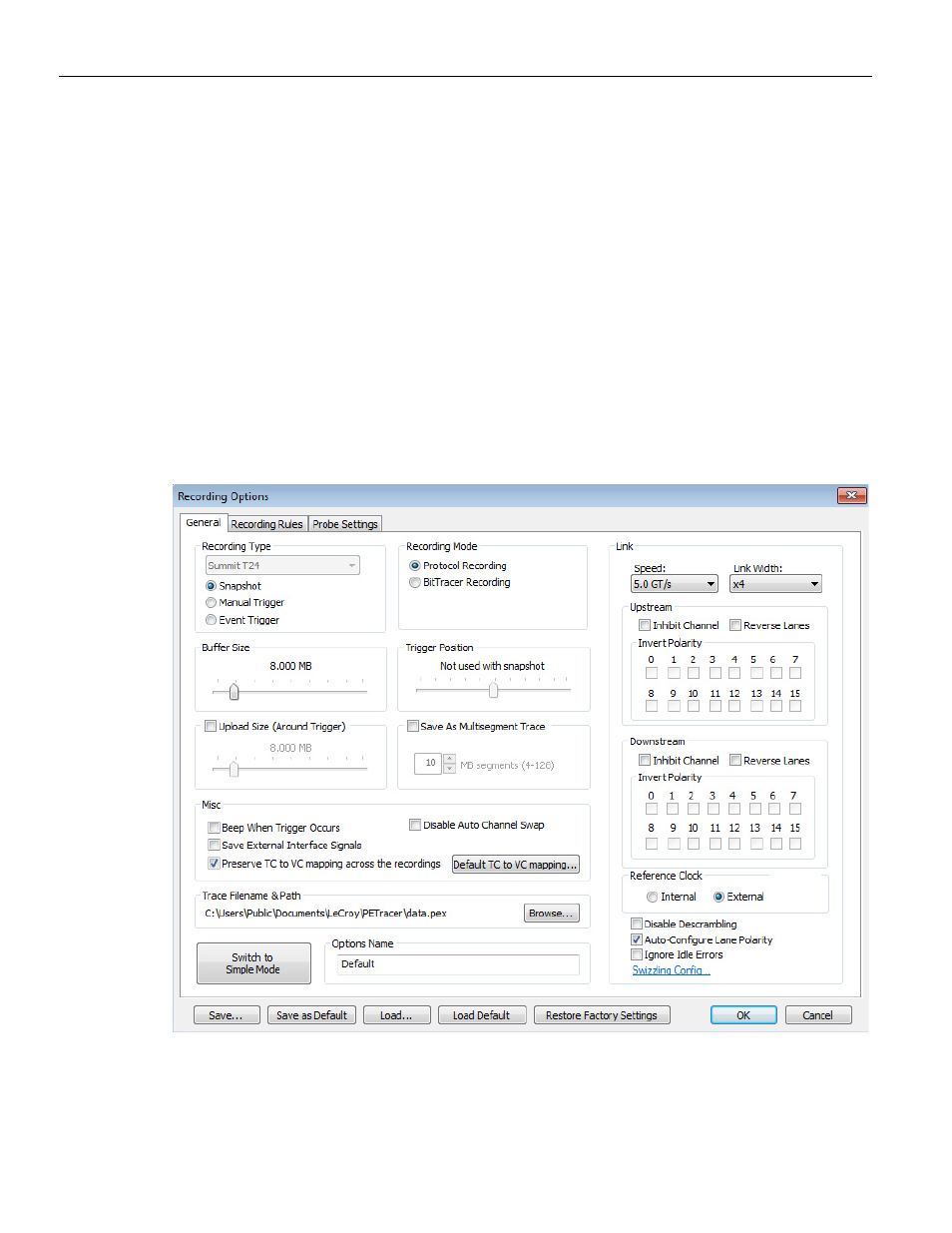

Figure 4.9: Summit T24 in Simple Recording Mode
3. In the Link section, specify the lane width of the PCI Express link to be analyzed. The
rest of the settings in this section can be left at the factory defaults for most
PCI Express systems.
