Teledyne LeCroy Timer
88 Summit T24 PCI Express Multi‐Lane Protocol Analyzer User Manual

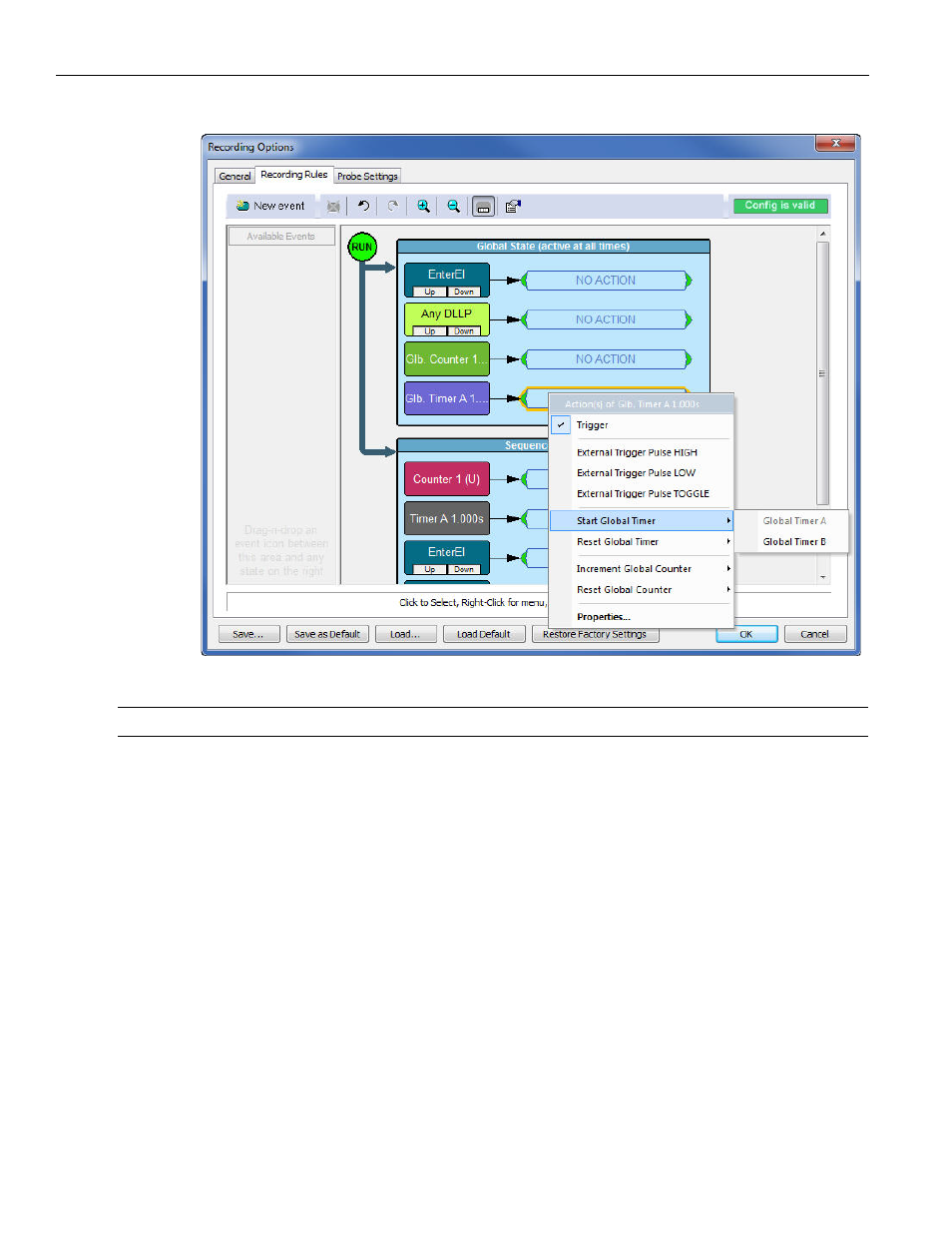

Figure 5.45: Starting and Resetting Global and Sequence State Timers
Note: Listed below are some of the considerations to note about timer functionality
1. If a timer is reset, it will restore to it's original value, in this case the value defined by
the user.
2. Resetting a timer will stop it and set it to it's original value.
3. Local timers for a particular state will automatically reset if the sequencer advances
to another state. Example: "Timer A" in State 1 and "Timer A" in State 2 are different
timers not related to each other.
4. Local timers are controlled by events defined in the same state where the timers are
defined.
5. In case of competing actions to control global timers using the same event from
global and local states, the control from local states takes priority.
5.23.3 Changing the Value of the Timer
To change the value of the timer:
1. Right‐click on the Timer.
2. Select Properties (see
Figure 5.46 on page 89 ).
