Teledyne LeCroy Timing and Bus Usage Calculations
202 Summit T24 PCI Express Multi‐Lane Protocol Analyzer User Manual

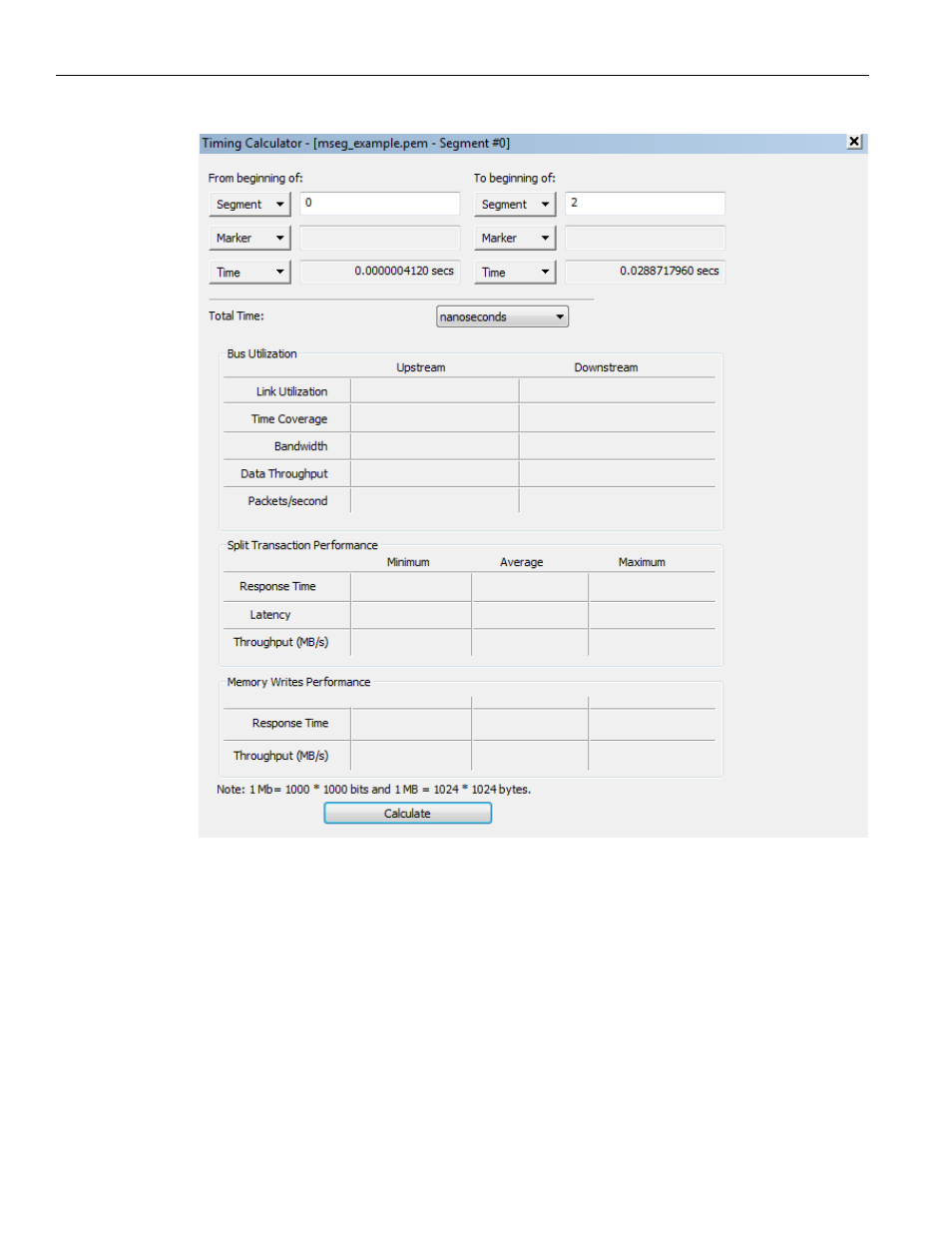

Figure 10.29: Timing Calculator Dialog
Total Time: Total time from beginning of the first unit to beginning of the second unit.
10.21.1 Bus Utilization
This portion of the Timing Calculator window gives values that are cumulative for all
packets during the timing period. For example, throughput is combined throughput of all
packets during the timing period.
Upstream is from endpoint devices to the root complex. Downstream is from the root
complex to endpoint devices.
Link Utilization: Percentage of non‐idle symbols in total number of symbols transferred.
