34 Summit T24 PCI Express Multi‐Lane Protocol Analyzer User Manual
Launching and Setting Recording Option from Dashboard View
You can select a device and click the Launch Recording Options as shown in Figure 4.5
button to go to Recording Options. In the Recording Options window the Upstream and
Downstream channels can be set manually by unchecking the Auto‐Configure Lane
Polarity checkbox, refer to
Figure 5.1 on page 48 (3G) . Click on the Port Polarity Settings
to Recording Options to save the settings.
Note: The lane polarity values are dynamic so this feature allows the user to make the
settings and save them for future use.
In the default setting the Auto‐Configure Lane Polarity checkbox is selected, refer to
Figure 5.1 on page 48 (3G).

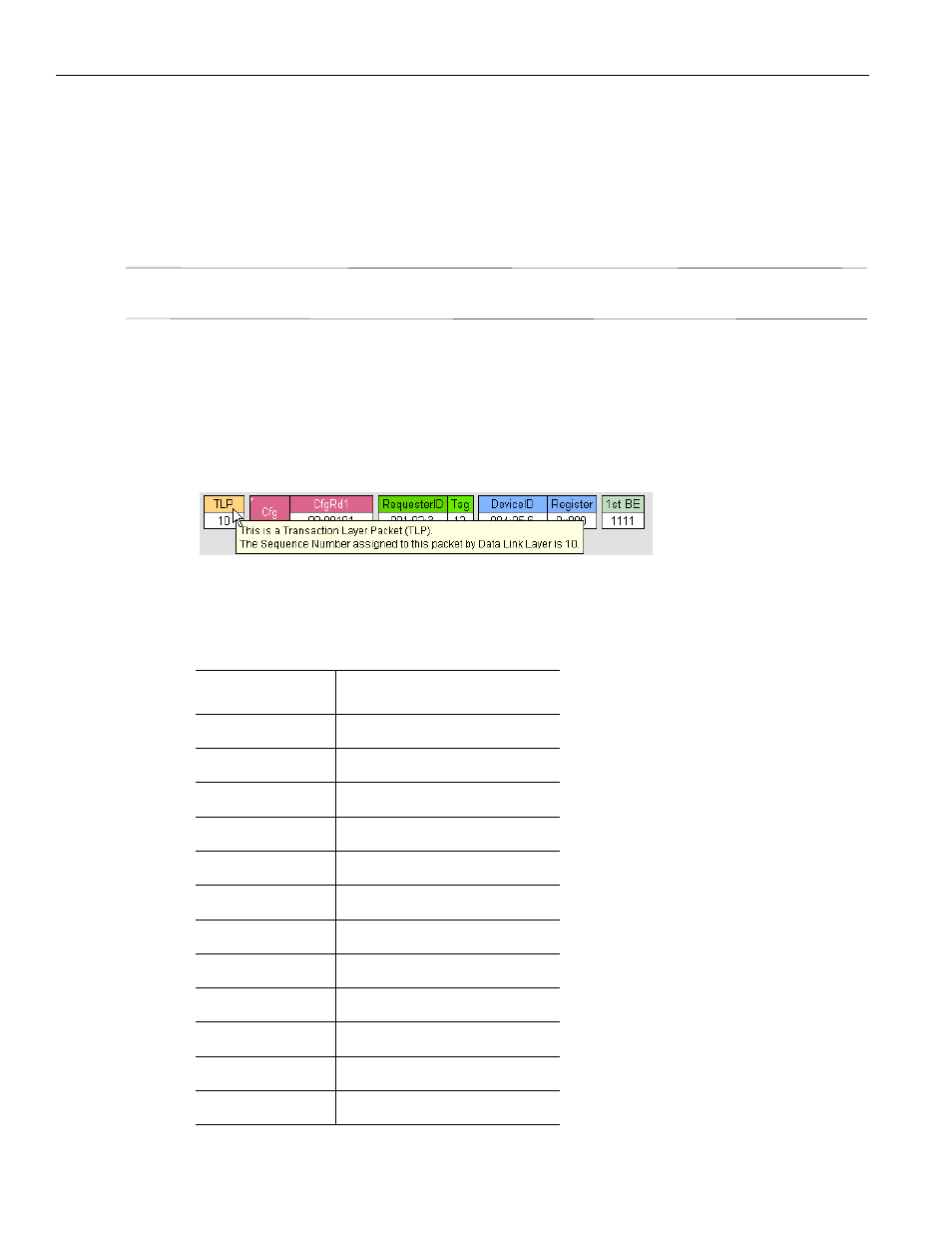

4.7 Tool Tips
Tool tips provide details about fields within the CATC Trace. To see a tool tip, position your
mouse pointer over a field within the CATC Trace.
You can turn off this capability in the Display Options menu.
4.8 Keyboard Shortcuts
Keystrokes Operation
Ctrl + N New PETracer script
Ctrl+O Open file
Ctrl+P Print
Ctrl+S Save file
Ctrl + R Start Analyzer recording
Ctrl + T Stop Analyzer recording
Ctrl+Home Jump to first packet
Ctrl+End Jump to last packet
Ctrl + G Go to packet ...
Ctrl + F Search forward
F1 Access documentation
F3 Find next
