Teledyne LeCroy Link Settings
58 Summit T24 PCI Express Multi‐Lane Protocol Analyzer User Manual
5.14.8 Swizzling Config...
The Swizzling Config dialog allows you to reconfigure the order of the US (UpStream) and
DS (DownStream) lanes.

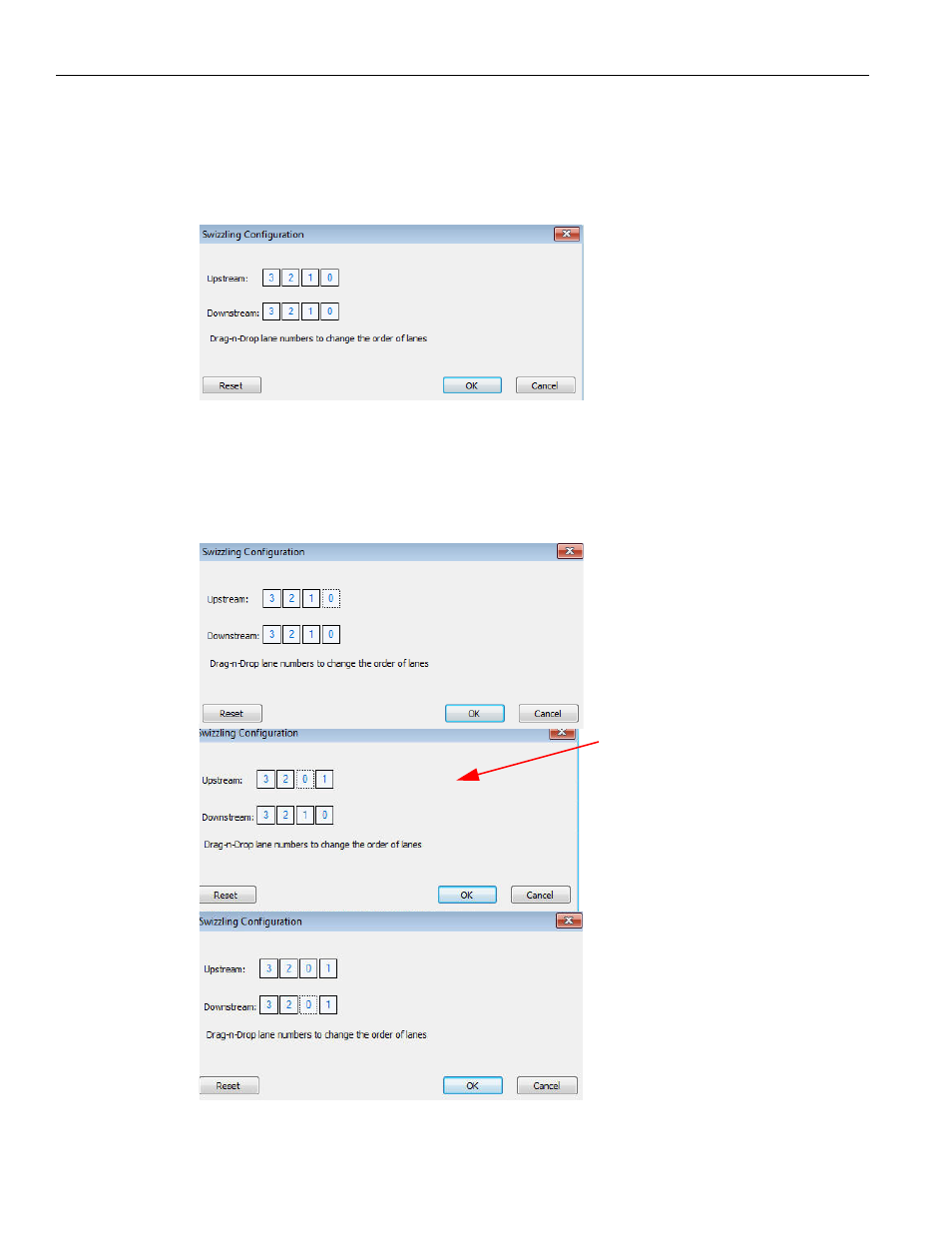

Figure 5.12: Swizzling Config Dialog
When the Auto‐Configure Lane Swizzle is checked, it is important to configure Lane 0. You
can do so by manually dragging Lane 0 to the required position (see
Figure 5.13 on
page 58 ).
Figure 5.13: Manually Configuring Lane 0
Manually moving Lane 0 to the
required position
