Summit T24 PCI Express Multi‐Lane Protocol Analyzer User Manual 103
Set Marker Teledyne LeCroy
6.9 Set Marker
A marker is a unique label for a packet that allows you to go to that packet and also serves
as a comment string for a specific packet. When you select a marker, the identified packet
appears at the top of the screen. Packets that have been marked have a red bar on the
left edge.
To set a marker, perform the following steps:

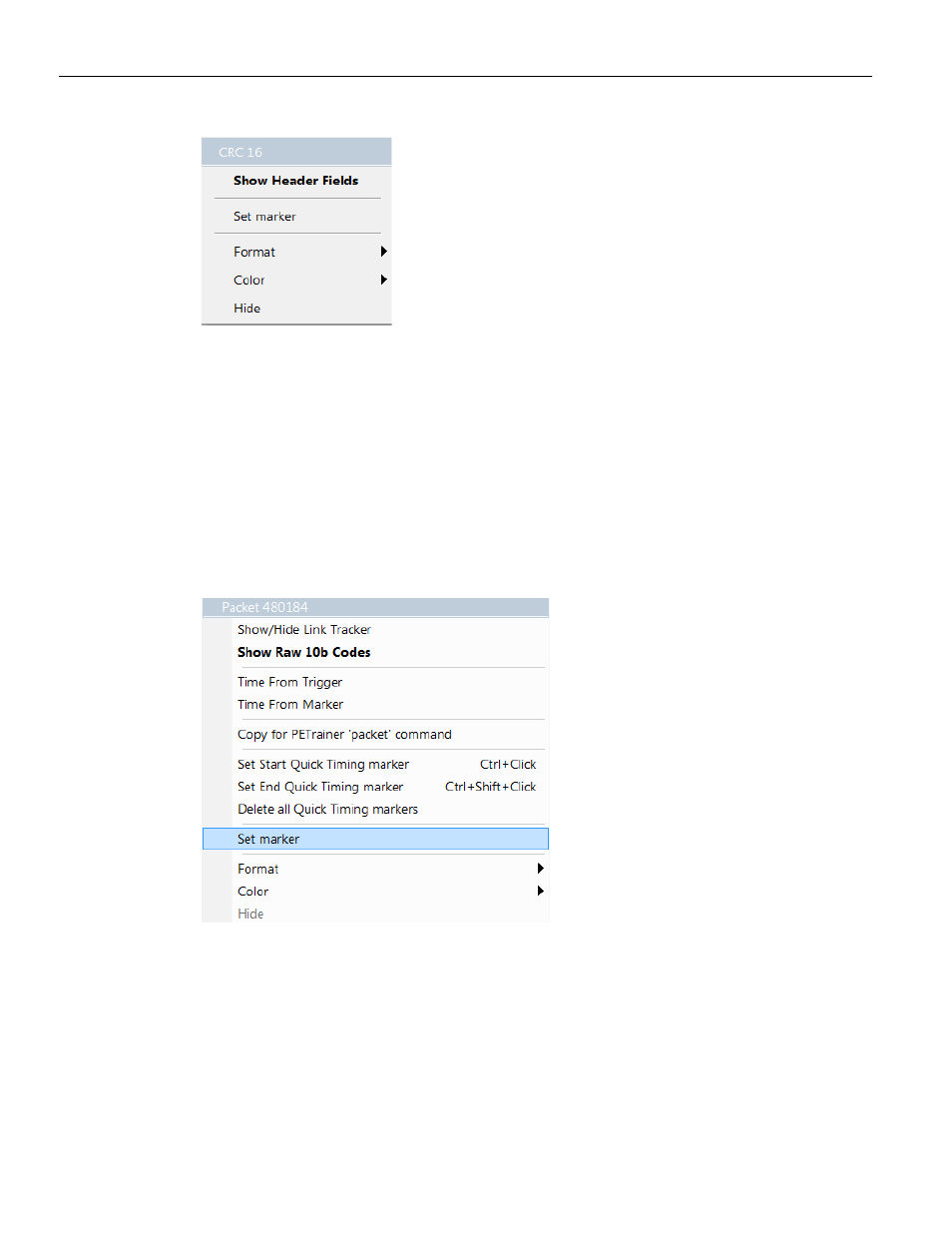

1. Left‐click the Packet field of the packet you want to mark (see the following screen)
or hover over the packet and click Ctrl+K, or select the packet and click Ctrl+L.
2. Click Set Marker.
3. When the Create Marker for Packet # pop‐up (see
Figure 6.4 on page 104 ), enter a
unique identifier for the packet in the Comment field.
