Teledyne LeCroy

Search for the Next Packet Type

138

Summit T24 PCI Express Multi‐Lane Protocol Analyzer User Manual

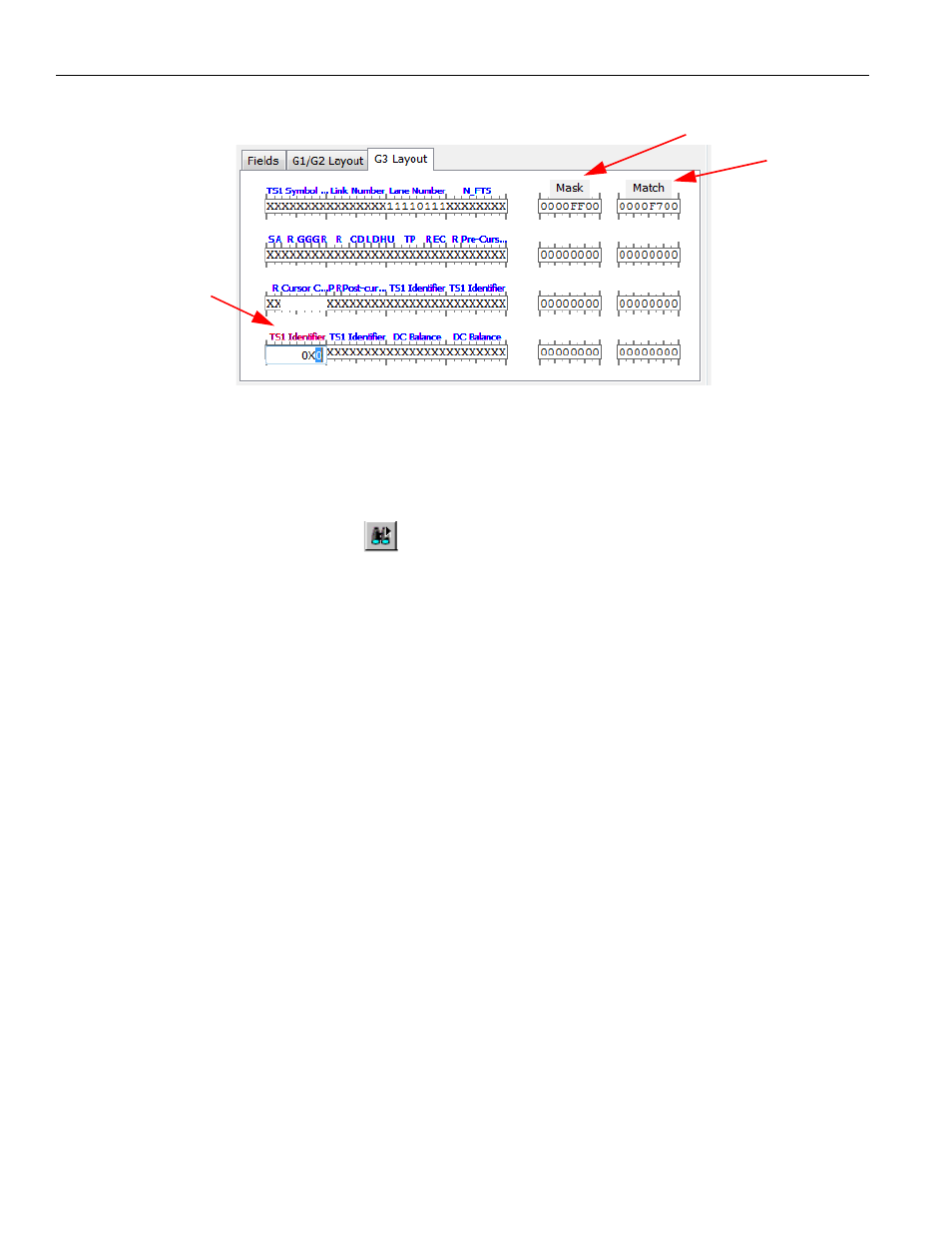

Figure 7.32: TS G3 Layout Tab

Select parameters from the links to use and enter the mask and match values.

7.11 Search

for

the Next Packet Type

Use Find Next or click

to search for the next packet meeting the search criteria.
