Summit T24 PCI Express Multi‐Lane Protocol Analyzer User Manual 147
Chapter 9
BitTracer Recording
Note:
BitTracer Recording is an optional feature.
The Summit T24 analyzer has an optional BitTracer data capture mode, which captures bi‐
directional link traffic in raw format. The BitTracer recording mode captures and displays
traffic before lane‐to‐lane de‐skew operations and before descrambling of 10b bytes. The
BitTracer mode includes support for multiple logical links (bifurcations) on a single
physical link.
The BitTracer recording mode has its own user interface, which provides characterizations
of link traffic that are not available in the standard protocol analyzer mode.
You can export BitTracer recordings for viewing in CATC Trace format.
Note: This feature can be included at initial purchase or added in the field with a software upgrade
license. To obtain a software license key to add this feature, contact Teledyne LeCroy.
9.1 Enabling BitTracer Recording

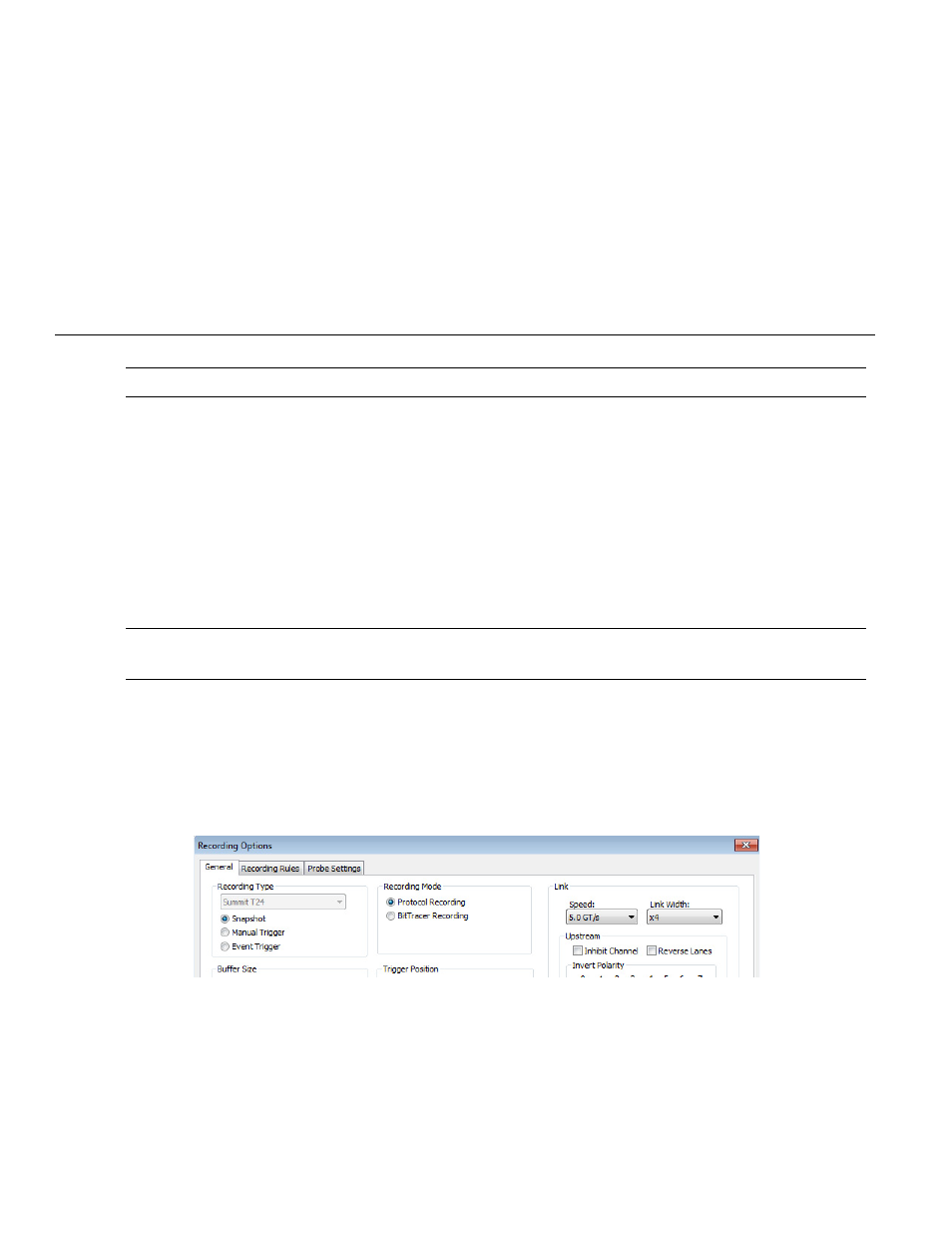

To enable the BitTracer recording mode, open the Recording Options.
In the Target Analyzer section of the General tab, select Summit T24.
In the Recording Mode section, select Bit Tracer Recording.
