Summit T24 PCI Express Multi‐Lane Protocol Analyzer User Manual 51
Recording Type Teledyne LeCroy
5.6.3 Saving Recording Options
Recording Options settings can be saved and later reused. Recording options settings are
stored in *.rec files.
1. Open the Recording Options dialog by selecting Setup > Recording Options.
2. Set your options, then click Save.
3. Enter a unique file name. The .rec extension is added by default.(optional) To add a
descriptive label to this file to help you remember what options were set, use the
Options Name box.
5.7 Recording Type
Recording Type allows you to specify the type of recording you want to make (See Figure
Figure 5.1 on page 48 : 2A). They are
 Snapshot
 Manual Trigger
 Event Trigger
The recording options available on each analyzer are different and you should select the
correct Target Analyzer to define it for the specific analyzer. As shown in the following
figure for the Summit T24 Analyzer is selected and the recording options available for it
are displayed.

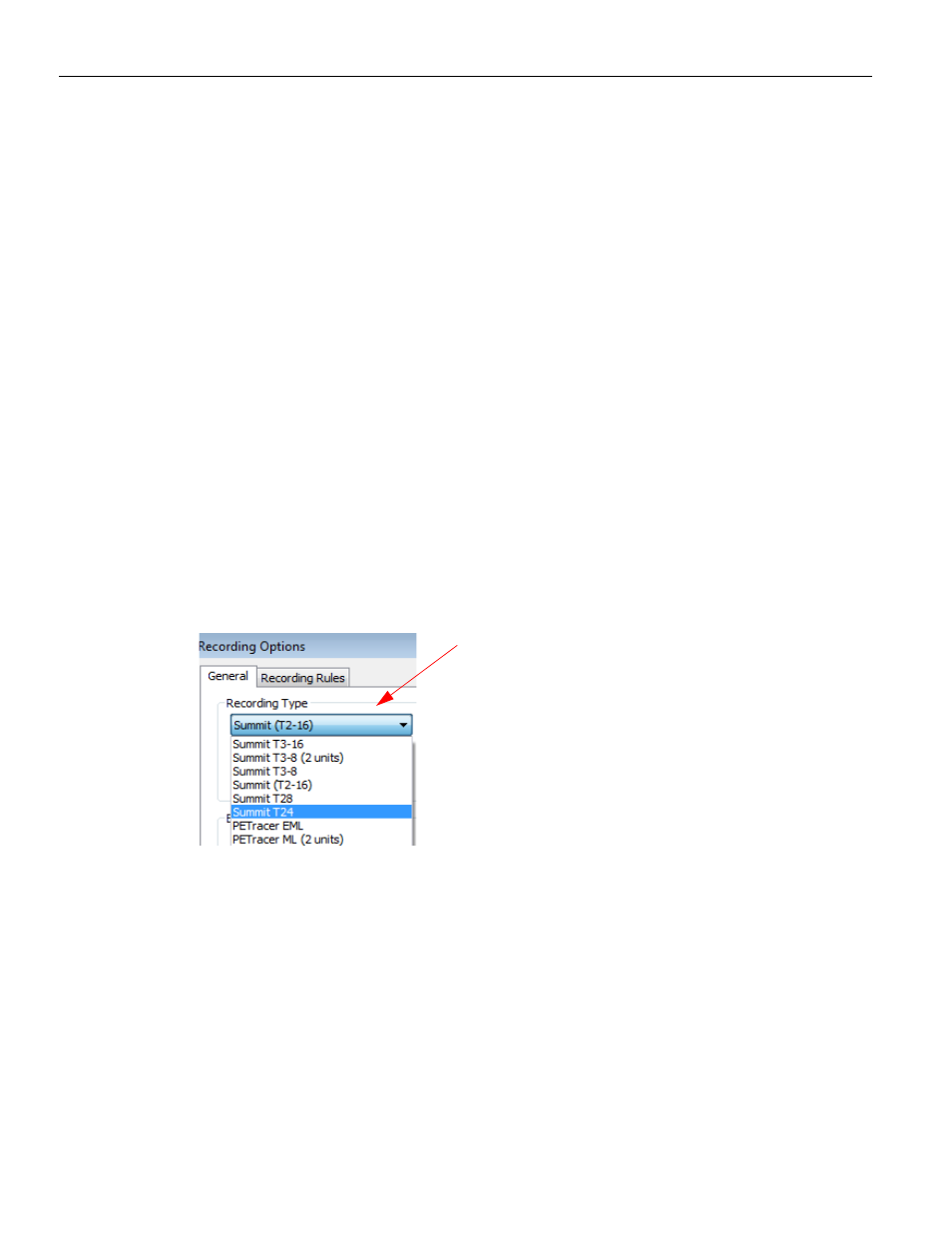

Figure 5.3: Selecting the Target Analyzer
You can choose the analyzer from the drop‐down menu which displays the following:
 PETracer Summit: Displays the options for the PETracer Summit Analyzer.
 Summit T28: Displays the options for the Summit T28 Analyzer.
 Summit T24: Displays the options for the Summit T24 Analyzer.
 Summit (T2‐16): Displays the options for the Summit T16 Analyzer.
 Summit T3‐8: Displays the options for the Summit T3‐8 Analyzer.
 Summit T3‐8 (2 Units): Displays the same options as Summit T3‐8 but lists Unit 1
and Unit 2 in the Link Section on the right. In a two‐unit setup, Unit 1 and Unit 2
are two separate Analyzers linked together.
 Summit T3‐16: Displays the options for the Summit T3‐16 Analyzer.
