Summit T24 PCI Express Multi‐Lane Protocol Analyzer User Manual 155
Decoding Bar Teledyne LeCroy

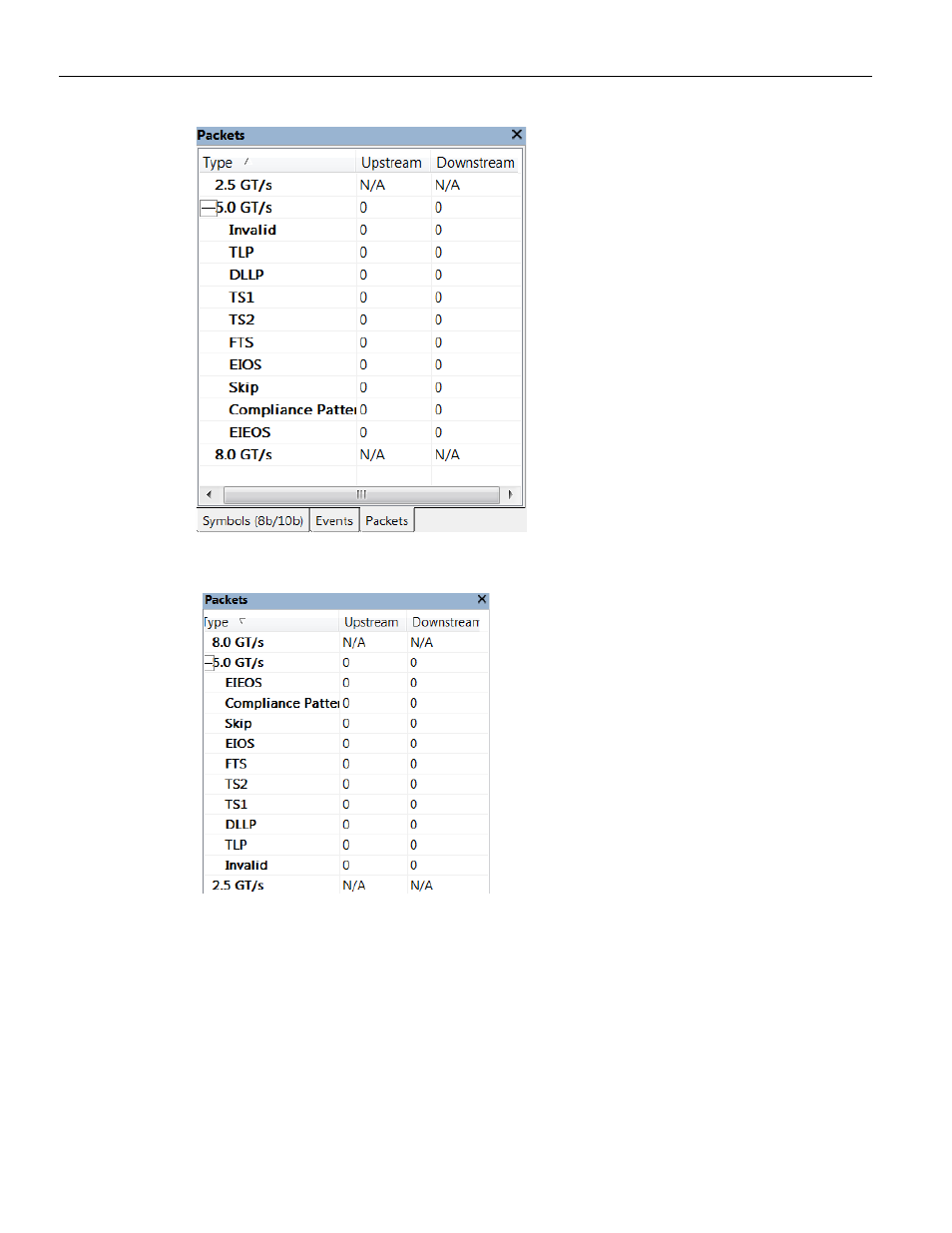

Figure 9.6: Packets Window
After analysis, the Packets Bar looks like the following:
9.12 Decoding Bar
If you select them in the data view, or search or jump locates a feature, BitTracer mode
displays ordered sets and packets in the Decoding window (see
“Decoding Window” on
page 156 ):
 Logical view is identical to CATC Trace format.
 Specification view provides a more elementary display. The Specification view
includes an option to display data in hex or binary format.
