120 Summit T24 PCI Express Multi‐Lane Protocol Analyzer User Manual
7.6.2 Attaching Markers
You can attach a discrete piece of information/data to a marker, for example, a text
description or file, an attachment of a trace file by a predefined order, video or audio
files, URL links or any other files. You can also remove an attachment from a Marker.
7.6.3 Adding an Attachment
Perform the following steps to add an attachment to a marker:
1. Right‐click on any cell in the trace and select Set Marker.
The Create Marker window displays.
2. Click on the Add icon.
The Add File to the Marker dialog displays.
3. Go to the file and select it to add it to the marker as an attachment.
4. Click Open.

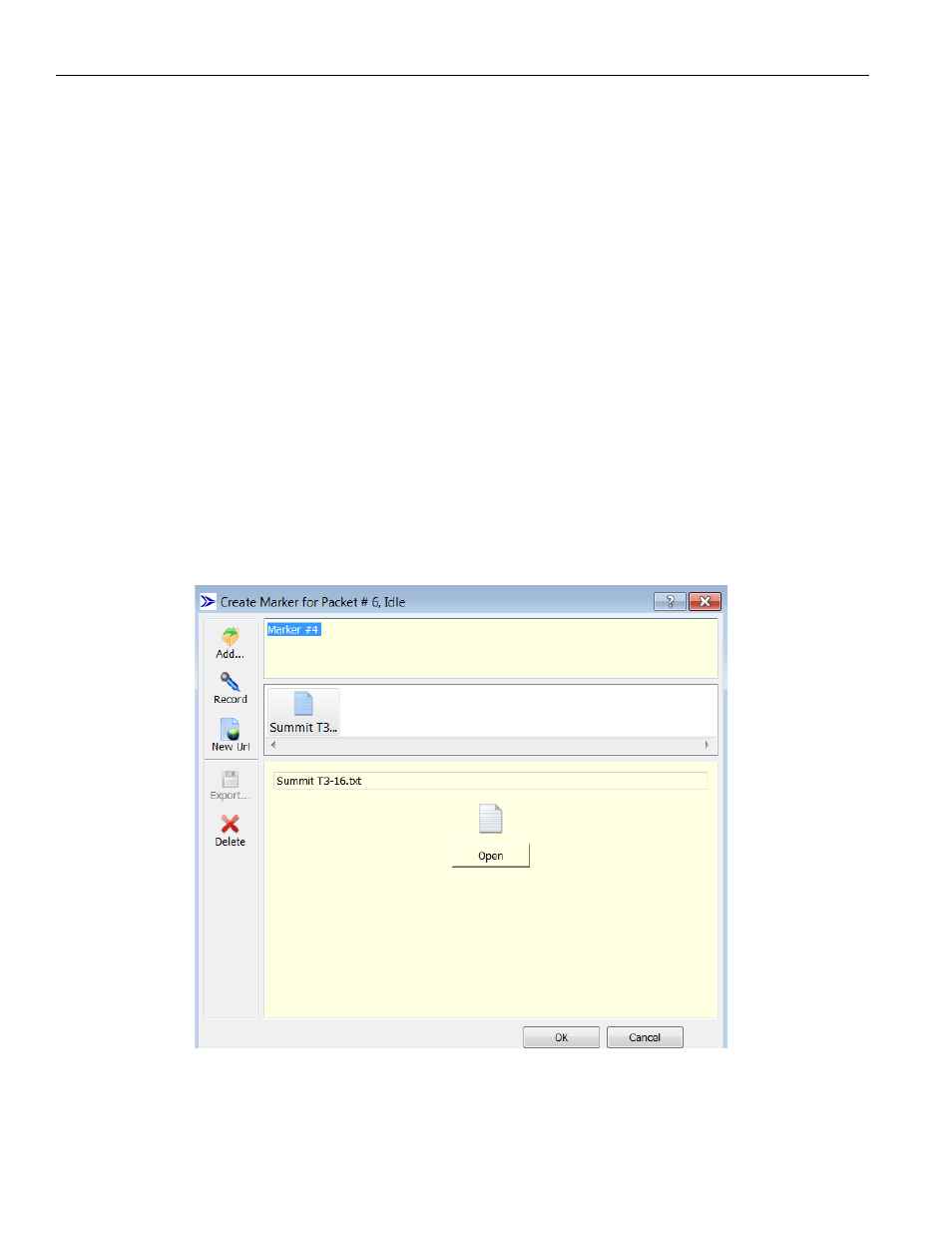

The file will appear in the Create Marker for Transfer... dialog as shown below. The
Marker # appears in the top panel, the icons are displayed in the second panel and
you can click on the icon on the third panel to view the file you are about to attach.
5. Click OK to add the attachments.
Figure 7.15: Create Marker for Packet Dialog
