2 link width, 3 upstream and downstream, 4 reference clock – Teledyne LeCroy Summit T24 PCIe Multi-lane Protocol Analyzer User Manual User Manual

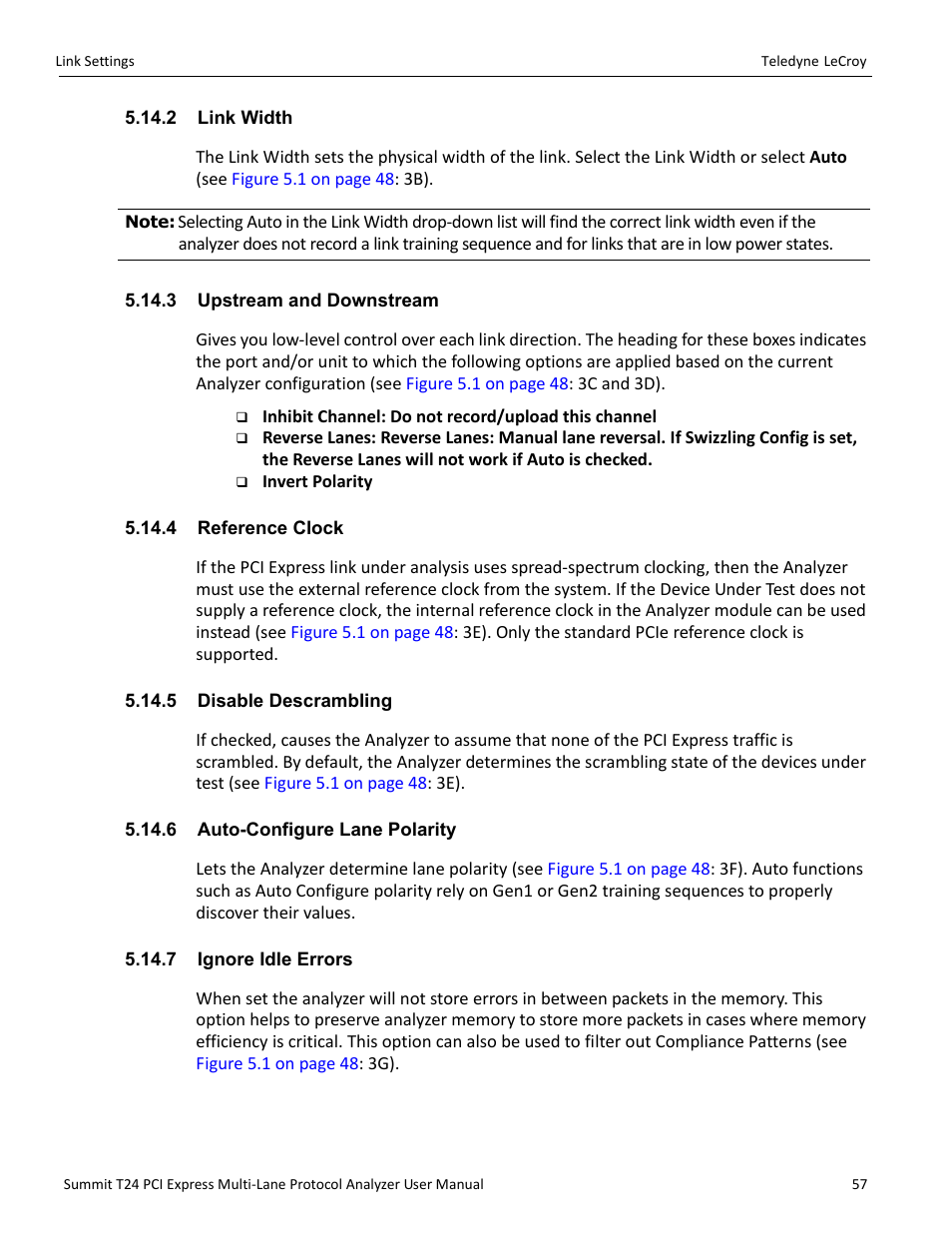

Page 69: 5 disable descrambling, 6 auto-configure lane polarity, 7 ignore idle errors
