71
4. Description of Operating Functions
4.4.9 Pitch Feeding by Relative Coordinate Specification
For the target position in the position table, relative coordinate specification is also available. Therefore, it can be
used in constant-pitch positioning (constant-pitch feeding).

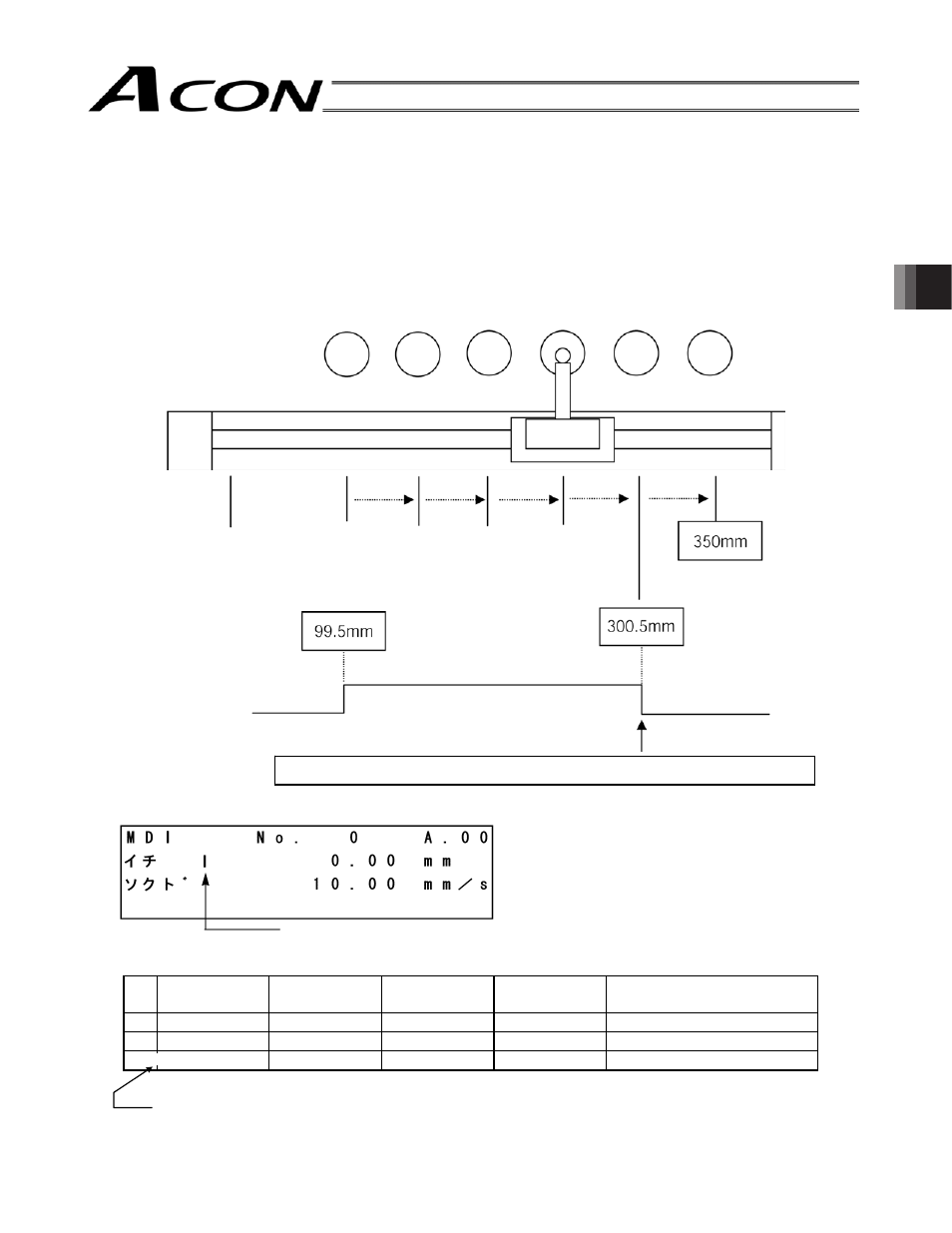

(1) Operation example in the position no. The following is the description of an example of positioning with a
50 mm pitch from position No. 1. Create a position table as shown below. Operational completion is judged
E\3/&¶VH[HFXWLQJFRXQWFRQWURO7KHFRPELQHG use of the zone signal allows a double check.
Example of position table
No.
Position
[mm]
Zone +
[mm]
=RQH±
[mm]
Incremental Comment
0 * * * 0
1 100.00 300.50 99.50 0
2 50.00 300.50 99.50 1
*Indicates the relative coordinate specification with the teaching pendant (RCM-T).
Position 1 50 mm pitch
Forward end
direction
Last work
Zone output signal
Set the coordinate value for the next last work to the positive-side boundary value.
=
*Indicates the relative coordinate specification with the teaching pendant (CON-T).
(I: Relative coordinate specification, A: Absolute coordinate specification)
