3. Installation and W
iring
3.8.2 Cutting off the Motor Drive Power Supply
If the safety category of the entire equipment requires motor drive power cut off, connect the EMG relay contact
between the MPI terminal and MPO terminal.
In addition, connect 24V of the controller power supply to the EMG terminal.
(Note) Please pay sufficient attention that the EMG switch of the teaching pendant leads to motor drive
signal shutdown and not motor drive power cutoff.

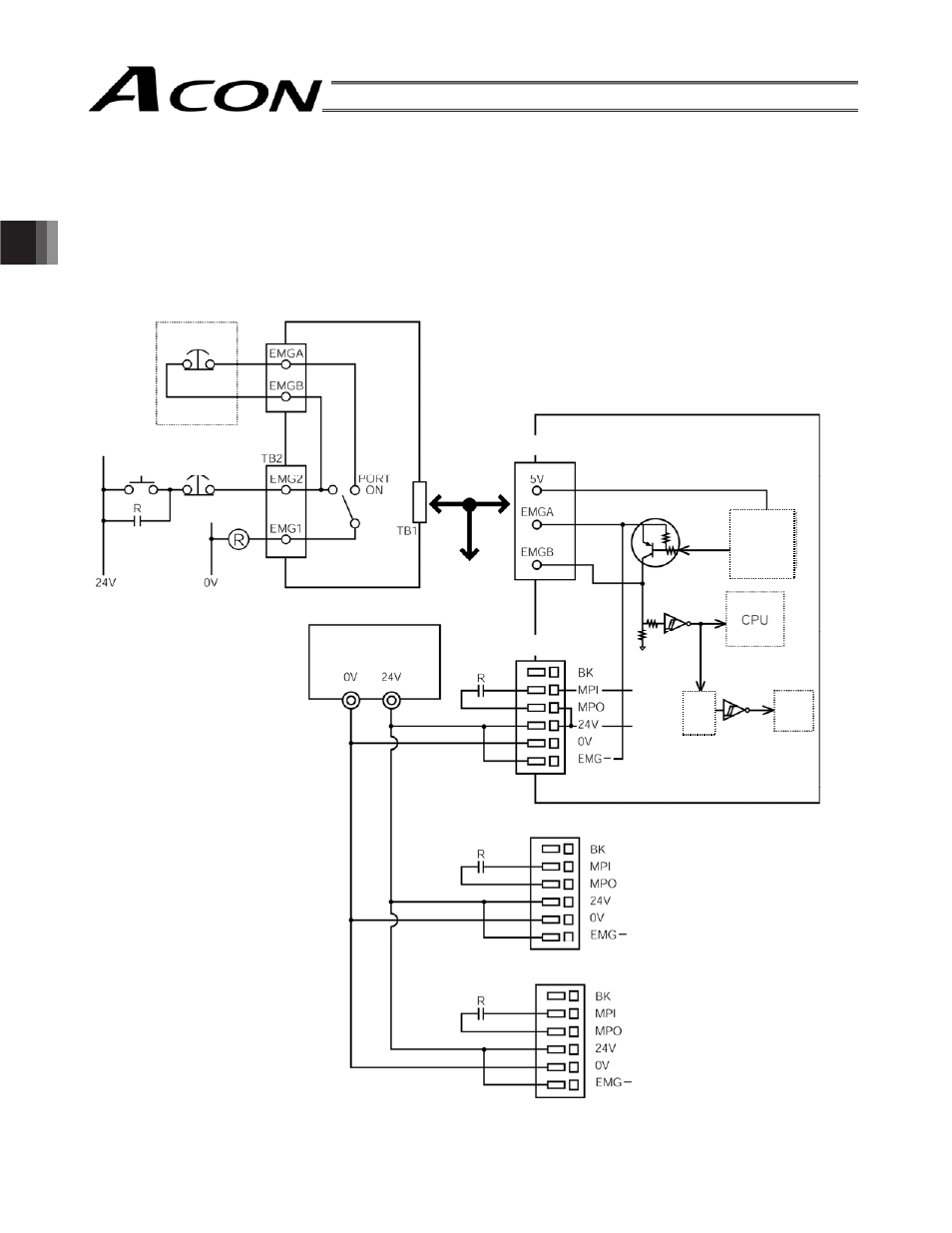

(1) When the SIO converter is used
Teaching pendant
EMG push
button
T.P. connector
SIO converter
ACON-SE controller
EMG reset
switch
EMG
push
button
Terminal
block
Input power supply
24 VDC
SIO
communication
SIO connector
SIO
connector
connection
detecting
circuit
Connection
detecting
signal (H)
Drive stop
signal (L)
Ti
m
e
const
ant
Control
power
supply
Power supply terminal block
Power supply terminal block (Unit 2)
EMG signal
detection
(H)
Motor drive
power
supply
Motor
drive
circuit
Power supply terminal block (Unit 3)
