25
3. Installation and W
iring
3.4 Heat Radiation and Installation
Design the control panel size, controller layout and cooling method in such a way that the temperature around the
controller will not exceed 40
qC.

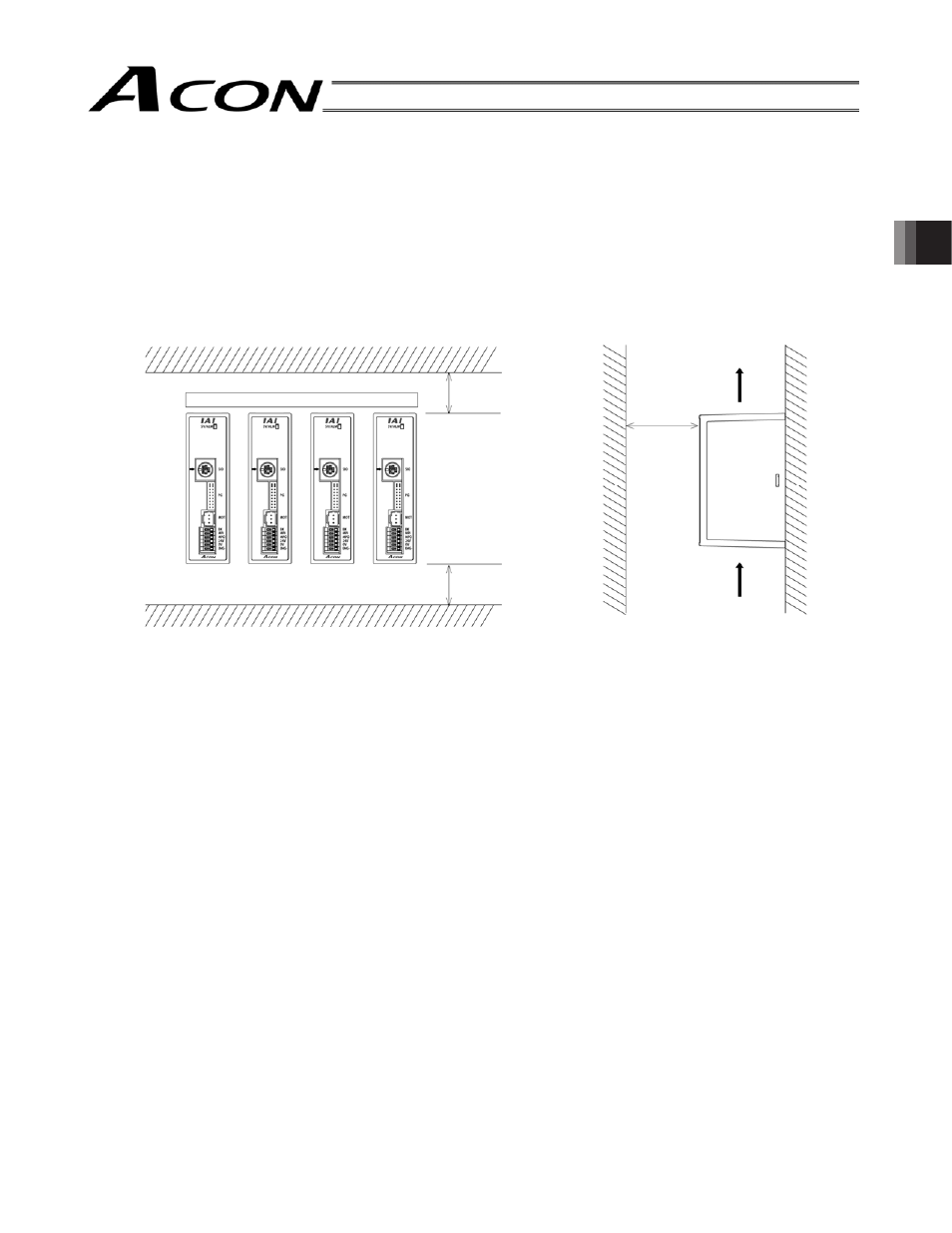

Install the controller vertically on a wall, as shown below. Since cooling is provided by way of natural convection,
always observe this installation direction and provide a minimum clearance of 50 mm above and below the
controller to ensure sufficient natural airflows.
When installing multiple controllers side by side, providing a ventilation fan or fans above the controllers will help
maintain a uniform temperature around the controllers.
Keep the front panel of the controller away from the wall (enclosure) by at least 80 mm.
Regardless of whether your system consists of a single controller or multiple controllers, provide sufficient
clearance around each controller so that it can be installed/removed easily.
Fan
50 mm or more
50 mm or more
80 mm or
more
Airflow
