36
3. Installation and W
iring
PC (USB port)
Conversion unit
(RCB-CV-USB)
SIO isolator
RS485
communication
Insulation
The isolator
communication cable
CB-RCB-SIO must be
purchased
separately.
Controller
24-V power
supply
Cable supplied with PC software (RCM-101-USB)
(USB cable + RCB-CV-USB + CB-RCA-SIO)

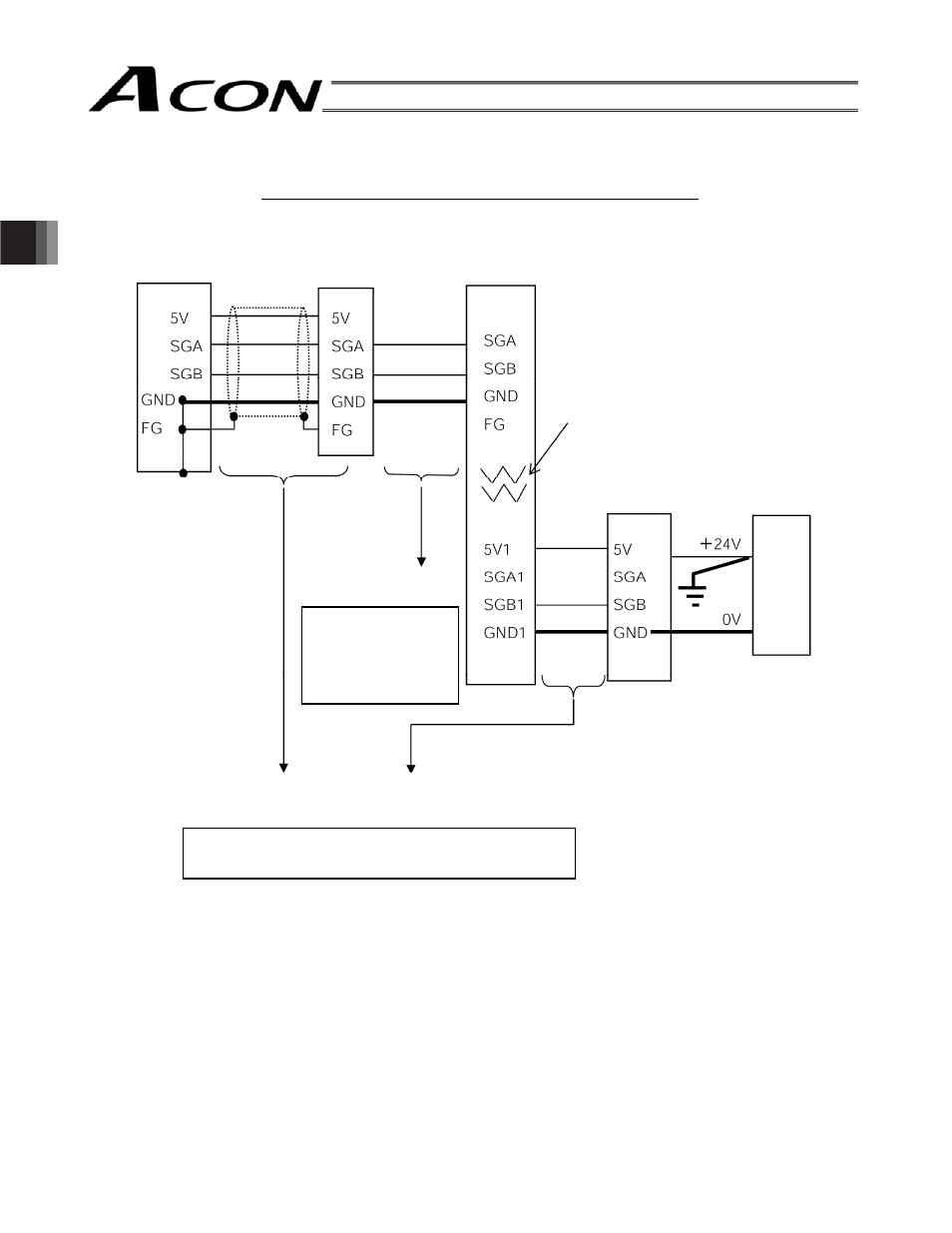

Connecting the PC to the ACON without using SIO converter (Grounding the positive side)
Be sure to connect the PC using a SIO isolator (RCB-ISL-SIO).
Take note, however, that only the RCM-101-USB PC software supports this configuration and RCM-101-MW
cannot be used.
