4.7.2.7. Number of Records
The DAS is capable of capturing several months worth of data, depending on the
configuration. Every additional data channel, parameter, number of samples setting etc.
will reduce the maximum amount of data points somewhat. In general, however, the
maximum data capacity is divided amongst all channels (max: 20) and parameters (max:
50 per channel).
The DAS will check the amount of available data space and prevent the user from
specifying too many records at any given point. If, for example, the DAS memory space
can accommodate 375 more data records, the ENTR key will disappear when trying to
specify more than that number of records. This check for memory space may also make
an upload of an DAS configuration with APICOM or a Terminal program fail, if the
combined number of records would be exceeded. In this case, it is suggested to either
try from the front panel what the maximum number of records can be or use trial-and-
error in designing the DAS script or calculate the number of records using the DAS or
APICOM manuals. To set the number of records for one channel from the front panel,
follow the instruction shown in section 4.7.2.2 then press.

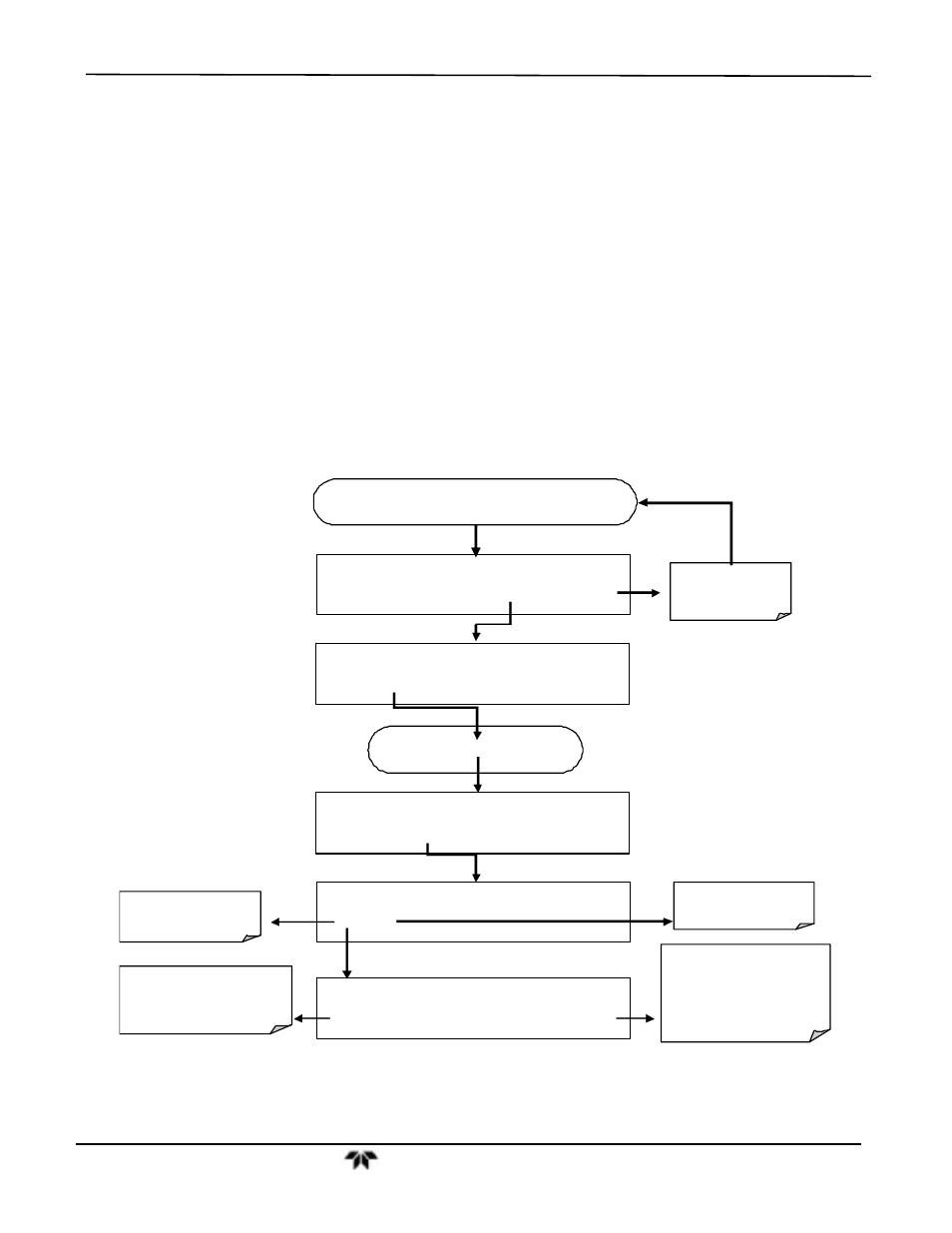

Edit Data Channel Menu
SETUP X.X 0) CONC: ATIMER, 8, 800
PREV NEXT INS DEL EDIT PRNT EXIT
Exits to the main
Data Acquisition
menu
SETUP X.X NAME:CONC
SET> EDIT PRINT EXIT
SETUP X.X NUMBER OF RECORDS:000
EDIT PRINT EXIT
SETUP X.X REPORT PERIODD:DAYS:0
0 0 0 0 0 ENTR EXIT
ENTR accepts the new
setting and returns to the
previous menu.
EXIT ignores the new setting
and returns to the previous
menu.
Toggle buttons to set
number of records
(1-99999)
SETUP X.X EDIT RECOPRDS (DELET DATA)
YES NO
NO returns to the
previous menu. YES will delete all data
in this channel.
Press SET> key until…
From the DATA ACQUISITION menu
(see Section 6.7.2.2)
