Model 9110TH NOx Analyzer

Operating

Instructions

Teledyne Analytical Instruments

122

around the zero point. This can be achieved in the 9110TH/M by defining a zero offset,
a small voltage (e.g., 10% of span).

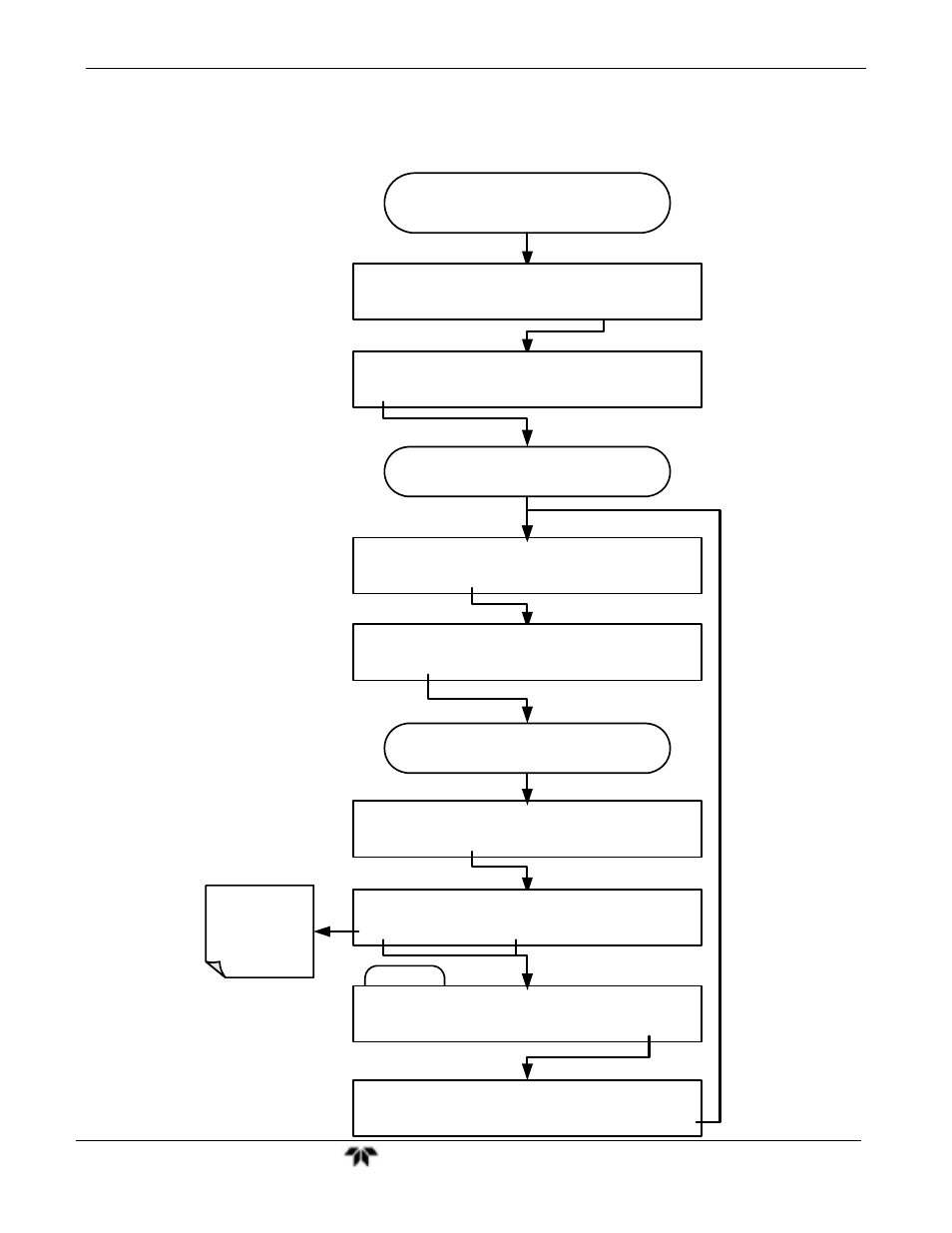

To add a zero offset to a specific analog output channel, press:

EXAMPLE

From the

AIO CONFIGURATION SUBMENU

(See Section 6.13.4.1)

DIAG AIO DATA_OUT_2 5V, NXCNC1, NOCAL

SET>

EDIT

EXIT

DIAG AIO DATA_OUT_2 REC OFS: 0 mV

SET>

EDIT

EXIT

DIAG AIO DATA_OUT_2 OUTPUT: 5V

SET>

EDIT

EXIT

DIAG AIO DATA_OUT_2 REC OFS: 0 mV

+

0

0

0

0

ENTR EXIT

DIAG AIO DATA_OUT_2 REC OFS: -10 mV

SET>

EDIT

EXIT

DIAG

ANALOG I/O CONFIGURATION

PREV NEXT

ENTR

EXIT

Toggle these

buttons to set

ther value of

the desired

offset.

Continue pressing SET> until ...

DIAG AIO DATA_OUT_2 REC OFS: -10 mV

0

0

1

0

ENTR

EXIT

Continue pressing SET> until you reach the

output to be configured

DIAG AIO AOUTS CALIBRATED: NO

SET>

CAL

EXIT
