Operating Instructions

Model 9110TH NOx Analyzer

Teledyne Analytical Instruments

101

5. In the instrument’s SETUP>MORE>COMM>COM2 menu, make the following settings:

Baud Rate: 115200
COM2 Mode Settings:
Quiet Mode

ON

Computer Mode

ON

MODBUS RTU

OFF

MODBUS ASCII

OFF

E,8,1 MODE

OFF

E,7,1 MODE

OFF

RS-485 MODE

OFF

SECURITY MODE

OFF

MULTIDROP MODE

OFF

ENABLE MODEM

OFF

ERROR CHECKING

ON

XON/XOFF HANDSHAKE OFF
HARDWARE HANDSHAKE OFF
HARDWARE FIFO

ON

COMMAND PROMPT

OFF

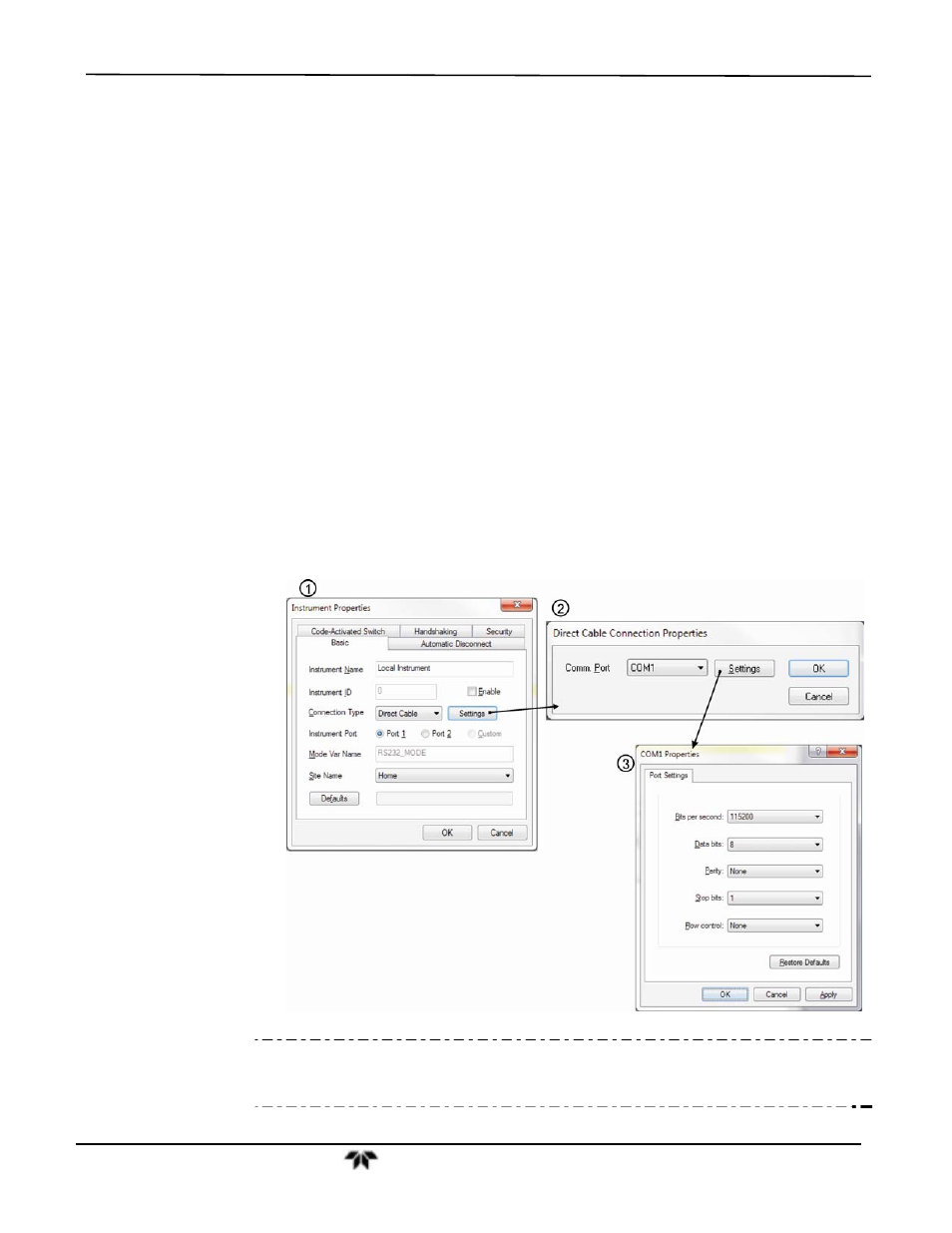

6. Next, configure your communications software, such as APIcom. Use the COM port

determined in Step 4 and the baud rate set in Step 5. The figures below show how
these parameters would be configured in the Instrument Properties window in
APIcom when configuring a new instrument. See the APIcom manual (PN 07463)
for more details.

Note

USB configuration requires that instrument and PC baud rates match; check the
PC baud rate and change if needed. Using the USB port disallows use of the rear
panel COM2 port except for multidrop communication.
