Operating Instructions

Model 9110TH NOx Analyzer

Teledyne Analytical Instruments

133

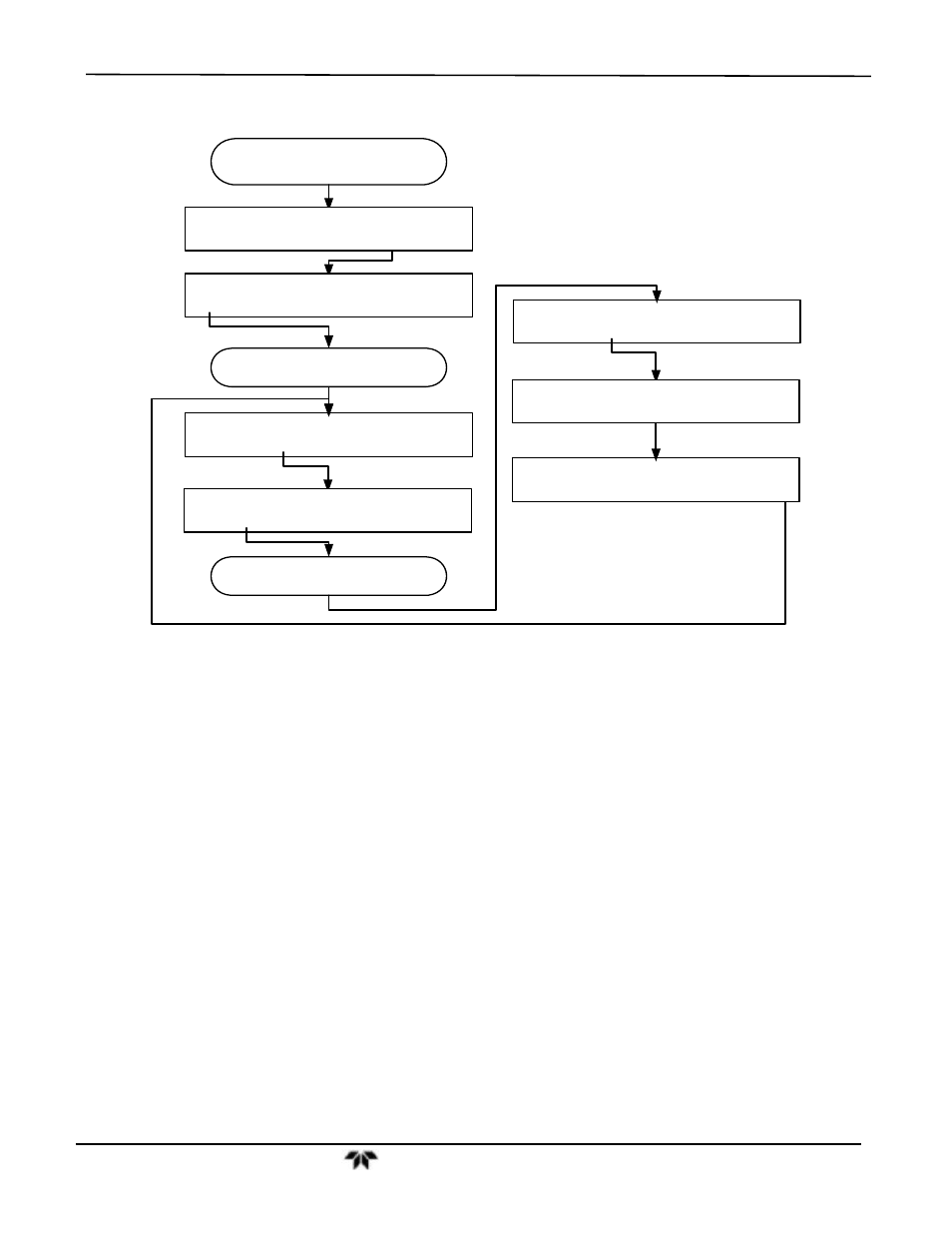

To initiate an automatic calibration for an individual output channel, press:

From the

AIO CONFIGURATION SUBMENU

(See Section 6.13.4.1)

DIAG AIO DATA_OUT_2 5V, NXCNC1, NOCAL

SET>

EDIT

EXIT

Continue pressing SET> until ...

DIAG AIO DATA_OUT_2 CALIBRATED:NO

SET>

CAL

EXIT

DIAG AIO DATA_OUT_2 RANGE: 5V

SET>

EDIT

EXIT

DIAG AIO

AUTO CALIBRATING DATA_OUT_2

DIAG AIO DATA_OUT_2 CALIBRATED: YES

SET> CAL

EXIT

DIAG

ANALOG I/O CONFIGURATION

PREV NEXT

ENTR

EXIT

Continue pressing SET> until you reach the

output to be configured

DIAG AIO AOUTS CALIBRATED: NO

SET>

CAL

EXIT
