Model 9110TH NOx Analyzer Operating Instructions
Teledyne Analytical Instruments 164

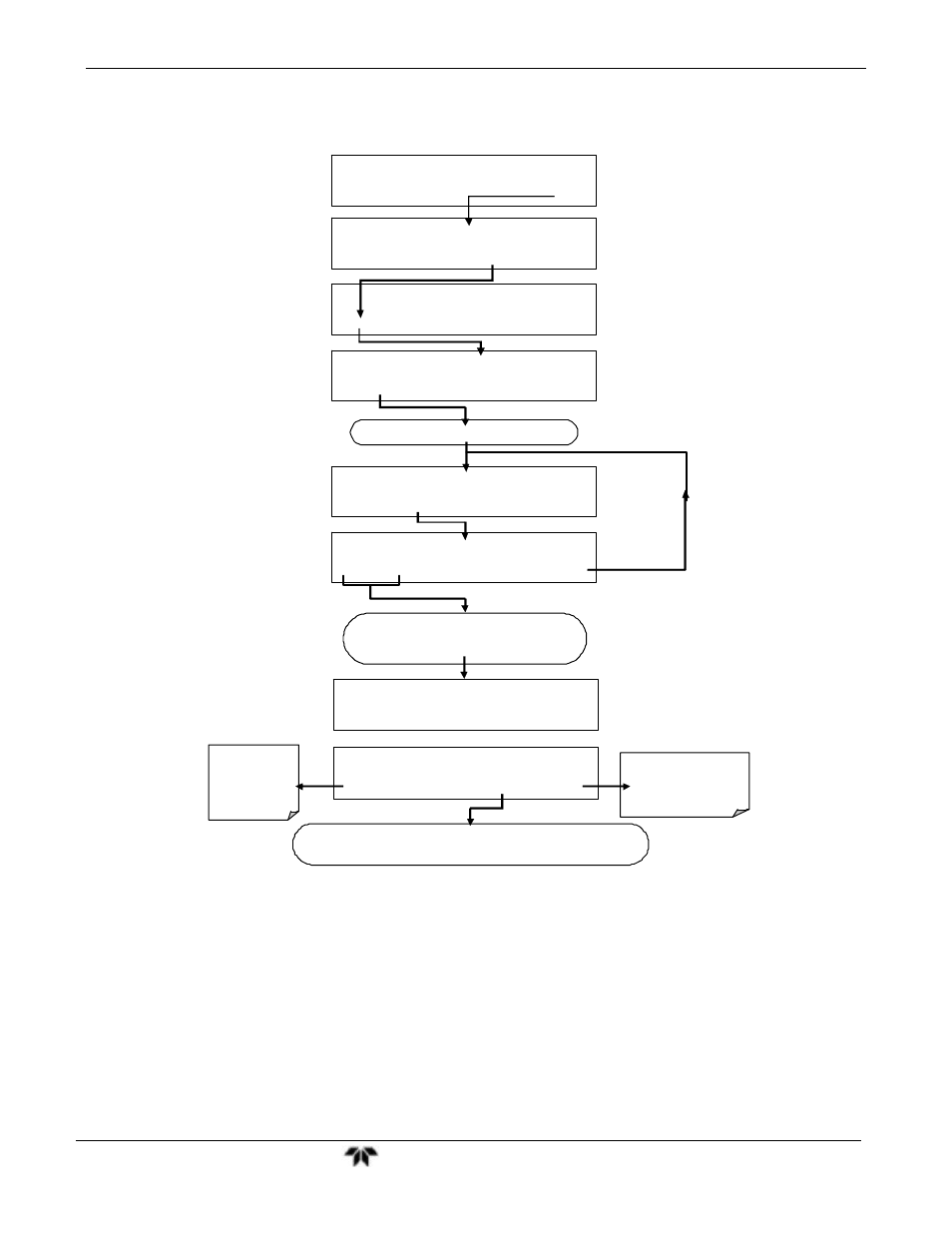

To assign or reset the status flag bit assignments, press:
SETUP X.X SECONDARY SETUP MENU
COMM VARS DIAG ALRM EXIT
SETUP X.X PRIMARY SETUP MENU
CFG DAS RNGE PASS CLK MORE EXIT
SAMPLE A1:NXCNC1=100PPM NOX=XXX.X
< TST TST > CAL SETUP
SETUP X. HESSEN STATUS FLAGS
SET> EDIT EXIT
SETUP X.X COMMUNICATIONS MENU
ID HESN COM1 COM2 EXIT
SETUP X. PMT DET WARNING: 0002
PREV NEXT EDIT PRNT EXIT
Repeat pressing SET> until …
SETUP X. SYSTEM RESET: 0000
PREV NEXT EDIT PRNT EXIT
and CH>
move the [ ]
cursor left and
right along the
bit string.
Repeat pressing NEXT or PREV until the desired
message flag is displayed. See Table 6-29.
For example …
ENTR key accepts the
new settings
EXIT key ignores the new
settings
SETUP X. SYSTEM RESET: [0]000
[0] ENTR EXIT
Press the [?] key repeatedly to cycle through the available character set: 0-9
Note: Values of A-F can also be set but are meaningless.
4.15.4.7. Instrument ID Code
Each instrument on a Hessen Protocol network must have a unique ID code. The
9110TH/M has a default ID of either 0 or 200. To change this code see Section 4.11.1
