Component identi¿ cation: flow cell – GF Signet 4632 Chlorine Dioxide Analyzer System User Manual
Page 6
6
463X Chlorine System Manual

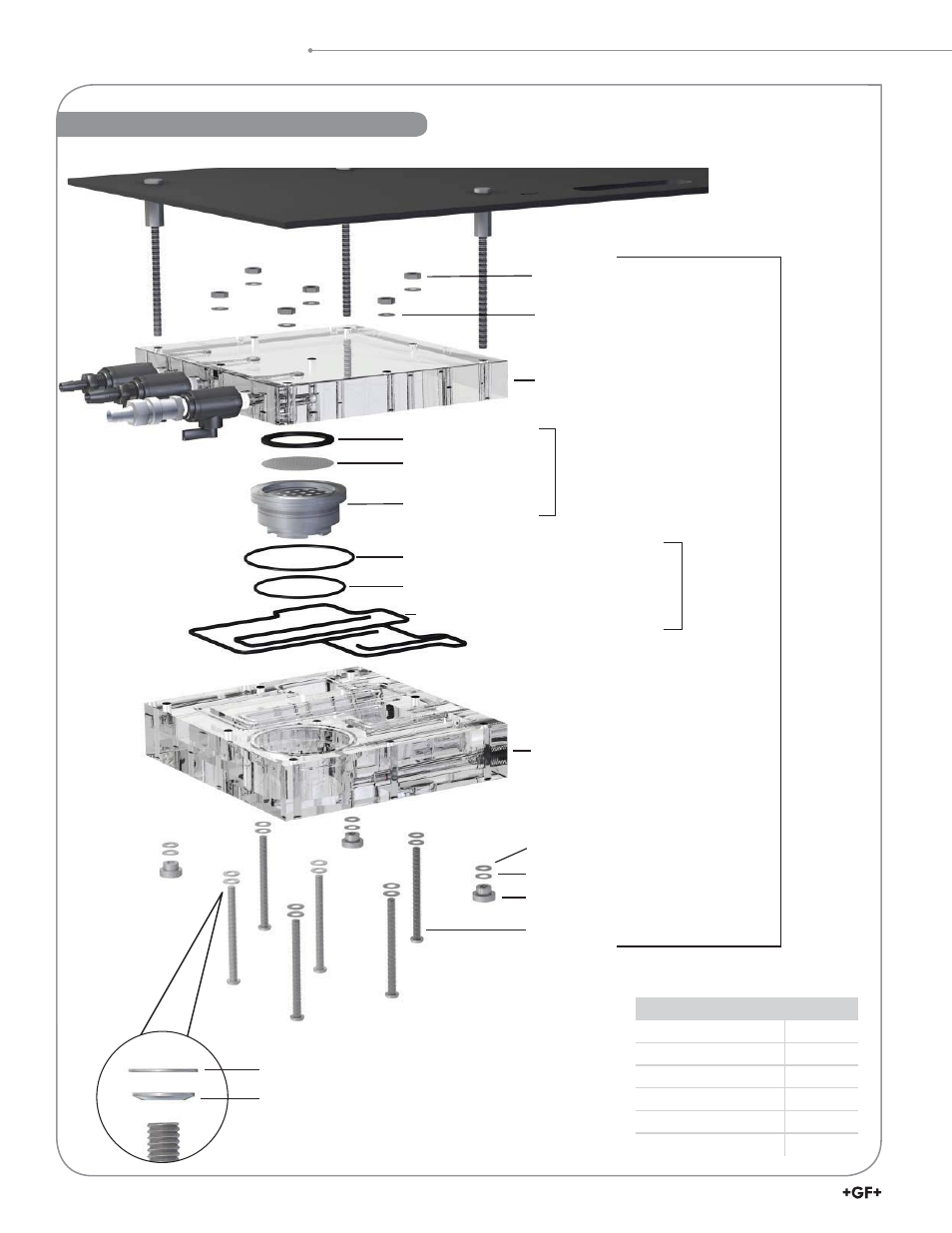

Flow cell front block
Disc spring
(2700-0003)*
Spacer ring
Stainless steel ¿ lter
Pressure regulator
Pressure regulator outer O-ring (large)
Pressure regulator outer O-ring (small)
Flow cell O-rings (4 segments)
Flat washer
Flat washer*
Disc spring (curved washer)
Knurled thumb nut
(1700-2512)*
Flow cell bolt
(2490-0554)
Included in kit 3-4630.390
Item
Quantity
Flow cell nut
6
Flat washer
15
Disc spring
9
Knurled thumb nut
3
Flow cell bolt
6
Flow cell nut
Flat washer
Flow cell back block
Regulator Assembly
(3-4630.391)
(159 001 689)
Flow Cell
Rebuild Kit
(3-4630.390)
(159 001 688)
*Not included with
3-4630.392 (159 001 690)
3-4630.392
(159 001 690)
Component Identi¿ cation
Component Identi¿ cation: Flow Cell
