3 463X Chlorine System Manual
Speci¿ cations and Dimensions
165 mm
(6.5 in.)
578 mm (22.75 in.)
79.3 mm (3.12 in.)
305 mm (12 in.)
254 mm (10 in.)
330 mm (13 in.)
76 mm (3 in.)
171 mm (6.75 in.)
Ø 7 mm
(0.27 in.)
25 mm
(1.0 in.)
Ø 13 mm
(0.52 in.)
Hand Holds
Material Safety Data Sheets (MSDS) are available online
at www.gfsignet.com.

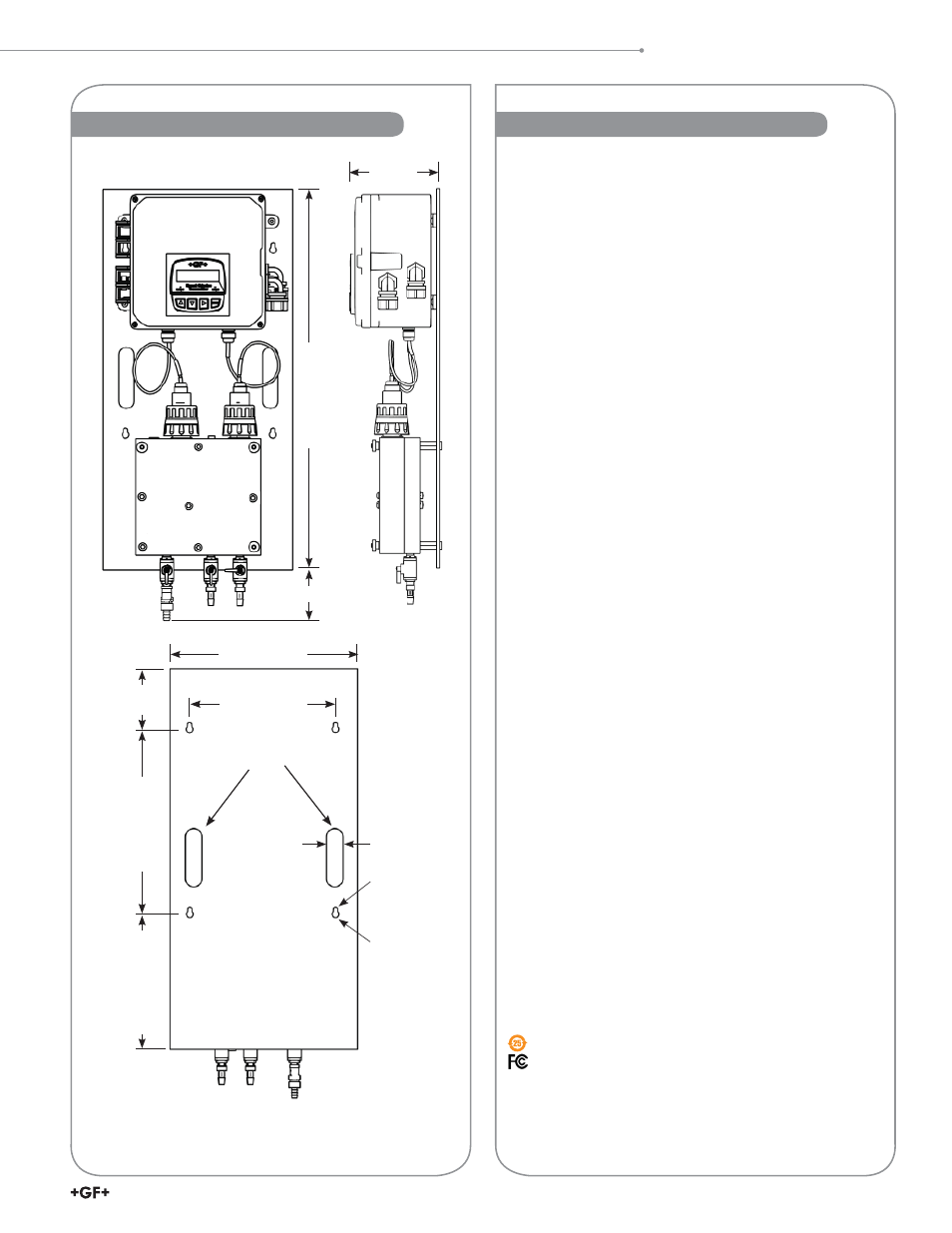

Chlorine System Dimensions Chlorine System Speci¿ cations
General
Compatible Signet Sensors:
• 3-2630-1 Free Chlorine Sensor 0-2 ppm
• 3-2630-2 Free Chlorine Sensor 0-5 ppm
• 3-2630-3 Free Chlorine Sensor 0-20 ppm
• 3-2632-1 Chlorine Dioxide Electrode 0-2 ppm
• 3-2724-00 Flat pH Electrode
Materials:
Panel: ....................................... Black acrylic
Flow Cell: .................................. Acrylic
Wiring Enclosure: ..................... Polycarbonate
Wetted Materials:
Flow cell, spacer rings: ............. Acrylic
Flow regulator housing ............. Polycarbonate
Strainer, e-clip, regulator spring,
À oat: ........................................ Stainless steel
Valves, vent: ............................. Polypropylene
Flow cell O-rings, diaphragm: ... EPDM, FKM
Chlorine electrode .................... PVC, PVDF or PTFE, FPM
pH electrode ............................. PPS, Glass, UHMW, PE, FPM
Sealing tape (valves, plug, vent) .. PTFE
Plug .......................................... Polyethylene
Performance
System Inlet Pressure Rating: .. 1 to 8 bar (15 to 120 psi)
Pressure Regulator:.................. < 0.69 bar (10 psi) variation
over all ranges of À ow and
pressure
Flow tolerance .......................... ±15% or rated speci¿ cation
above
Flow rate limits .............................8 to 12 gph (US)
(30.24 to 45.36 LPH)
Electrical
AC Input (standard): ................. 100 to 240 VAC nominal
50 to 60 Hz, 0.17 A at 100 VAC
DC Input (optional): ....................12 to 24 VDC ±10% regulated,
10 W, 250 mA max
Environmental Requirements
Storage Temperature: ............... 0 °C to 65 °C (32 °F to 149 °F)
Operating Temperature: ............ 0 °C to 45 °C (32 °F to 113 °F)
Relative Humidity:..................... 0 to 95%
Maximum Altitude: .................... 6562 ft (2000 m)
Shipping Weight: ...................... 22 lbs (10 kg)
Enclosure:................................. NEMA 4X (with output wire
glands sealed)
Standards and Approvals
• CE, UL, CUL, WEEE
• RoHS
Compliant
• Manufactured under ISO 9001 for Quality,
ISO 14001 for Environmental Management and
OHSAS 18001 for occupational health and safety.
China RoHS (Go to www.gfsignet.com for details)
Declaration of Conformity according to FCC Part 15
This device complies with Part 15 of the FCC rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and,
(2) This device must accept any interference received,
including interference that may cause undesired operation.
