8
System Description
5.1.2. combination with valve types and
mounting versions
The Remote Sensor Type 8798 can be mounted on different control
valves. For example on valves with piston or membrane actuator. The
actuators can be single-acting or double-acting.
linear remote sensor
This linear Remote Sensor can be fitted to Bürkert process valves of
the following types: 2103, 2300, 2301, 26xx and 27xx.
Remote Sensor for
Type 26xx and 27xx
Remote Sensor for
Type 2103, 2300 and 2301

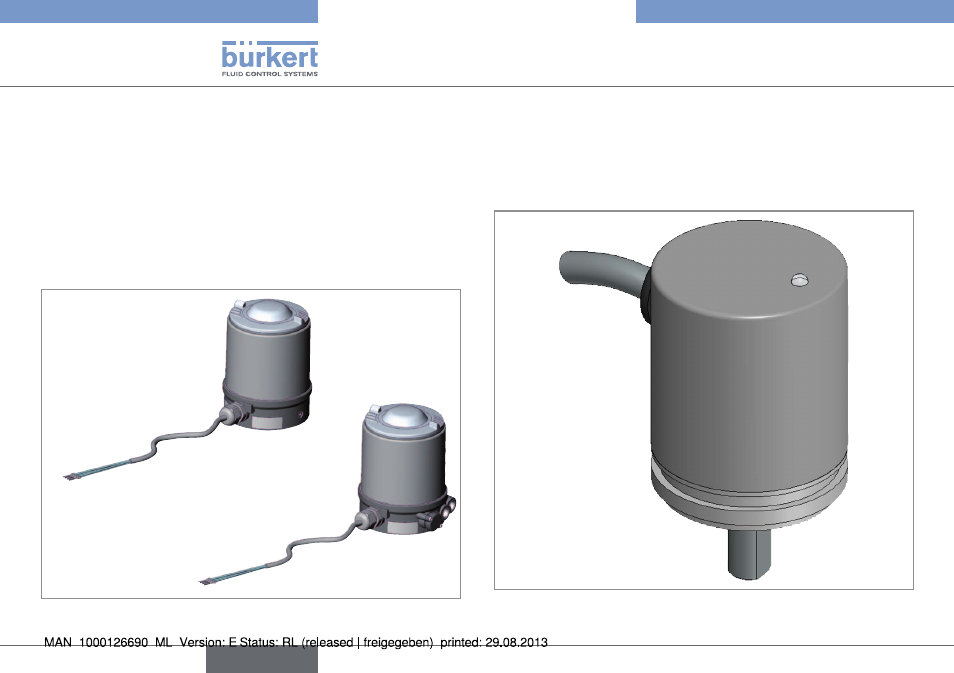

Fig. 1: Linear Remote Sensor
rotating remote sensor
This rotating Remote Sensor can be fitted to push actuators
according to NAMUR recommendation (DIN IEC 534 T6) or to
swivel actuators according to VDI/VDE 3845.
Fig. 2: Rotating Remote Sensor
English
Type 8798
