Installation
8.2.4. rotating the linear remote sensor
for process valves belonging to series
26xx and 27xx
If the connecting cable cannot be fitted properly following installation
of the process valve, the Remote Sensor can be rotated contrary to
the actuator.
Fastening
screw (2x)
Actuator
Remote
Sensor

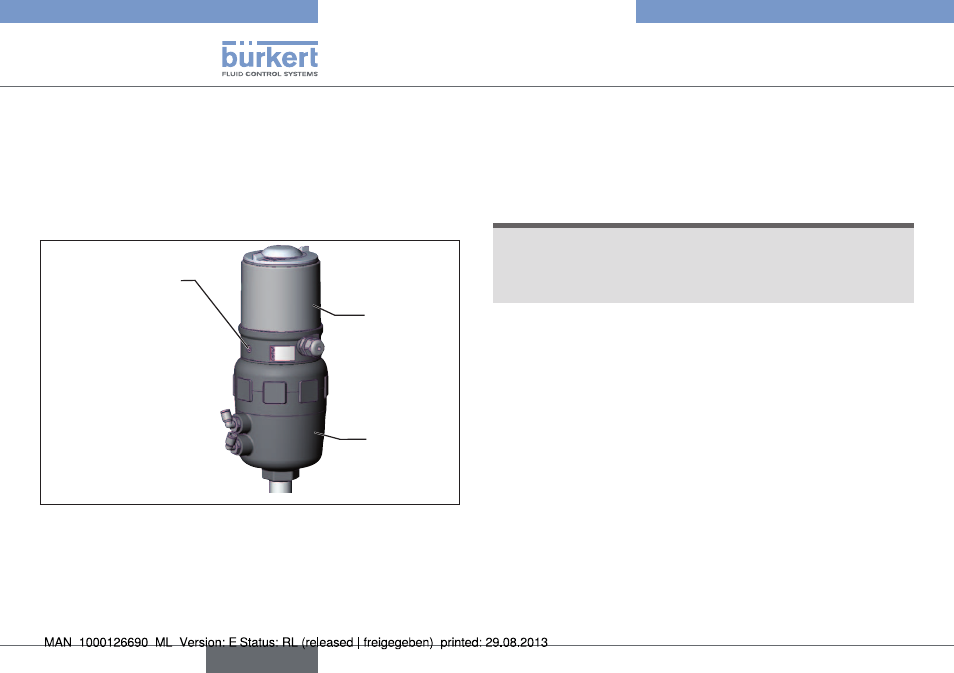

Fig. 18: Rotating the linear Remote Sensor, series 26xx and 27xx
Procedure:
→
Loosen the fastening screws countersunk in the side of the
housing (hexagon socket wrench size 2.5).
→
Rotate the Remote Sensor into the required position.
note!
too high torque when screwing in the fastening screw does
not ensure protection class ip65 / ip67!
• The fastening screw may be tightened to a maximum torque of
0.5 Nm only.
→
Tighten the fastening screws hand-tight only
(maximum torque: 0.5 Nm).
