23
Installation
Procedure:
→
Perform basic installation
(for a description, refer to chapter “8.3.1”).
Setscrews,
tightened with
lock nut
Adapter

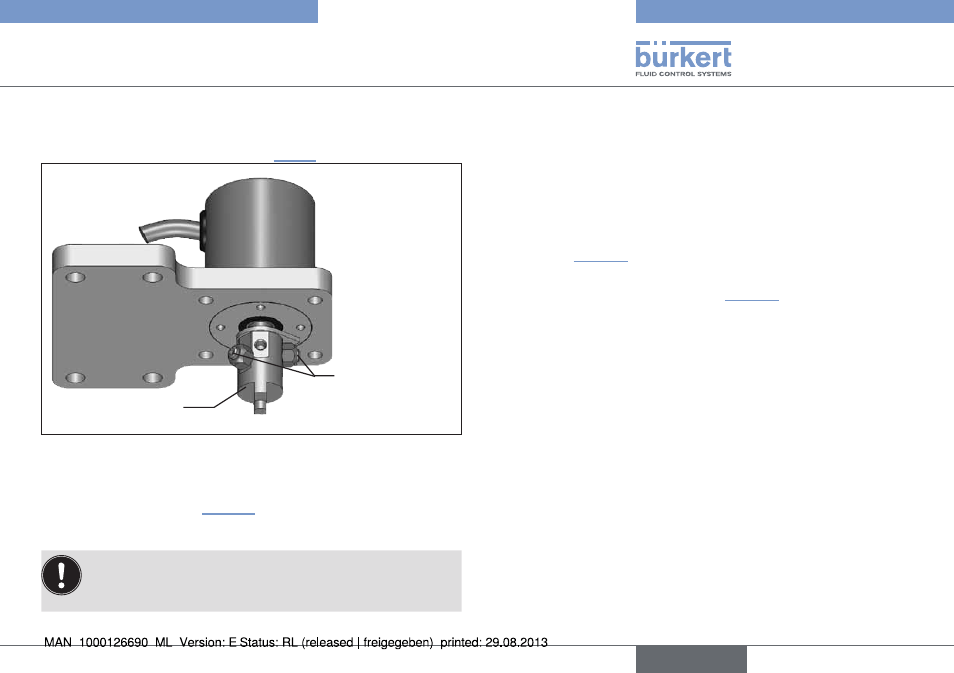

Fig. 21: Fitting the adaptor
→
Fit adaptor to the shaft of the rotating Remote Sensor and attach
with 2 setscrews (see “Fig. 21” ).
Anti-twist safeguard:
Note the flat side of the shaft!
As an anti-twist safeguard, one of the setscrews shall rest
on the flat side of the shaft.
→
Tighten the setscrews with the lock nuts.
→
Assemble the multi-part assembly bridge suitable for the
actuator.
→
Screw the support plate of the rotating Remote Sensor on the
assembly bridge, using 4 cheese-head screws and circlips.
(Refer to “Fig. 22”).
→
Screw assembly bridge on the swivel actuator, using 4 cheese-
head screws and circlips (refer to “Fig. 22”).
