Installation

Attachment
points for
support plate
with assembly
bridge

Support plate

Assembly

bridge

(consists of 4

parts which can

be adjusted to

the actuator

by varying the

arrangement)

Swivel

actuator

Attachment
points for
assembly bridge
with swivel
actuator

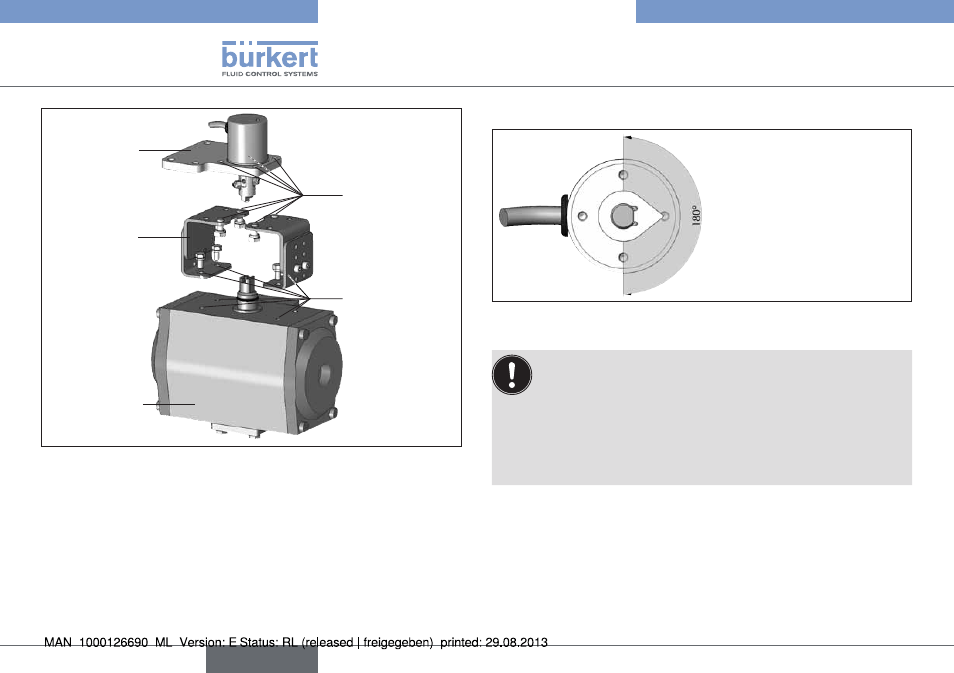

Fig. 22: Fitting the rotating Remote Sensor to a swivel actuator

measurement range of the rotating remote sensor:

The rotating Remote Sen-
sor’s measurement range
of 180° is located on the
opposite side of the power
output.

Fig. 23: Measurement range of the rotating Remote Sensor

If the X.TUNE ERROR 5 message is indicated on the
graphics display of the position controller after the X.TUNE
function starts, the sensor is not correctly aligned with the
shaft of the actuator.
• Check the alignment. The zero crossing of the sensor

must not be exceeded.

• Then repeat the X.TUNE function.
