10
Technical Data
6.5. pneumatic data
only if installed on process valves with internal air supply
Type 2103, 2300 and 2301
Temperature range
of compressed air: see the process valve operating
instructions
Pressure range: 0 ... 7 bar
Connections: Plug-in hose connector Ø 6mm / 1/4"
Socket connection G1/8

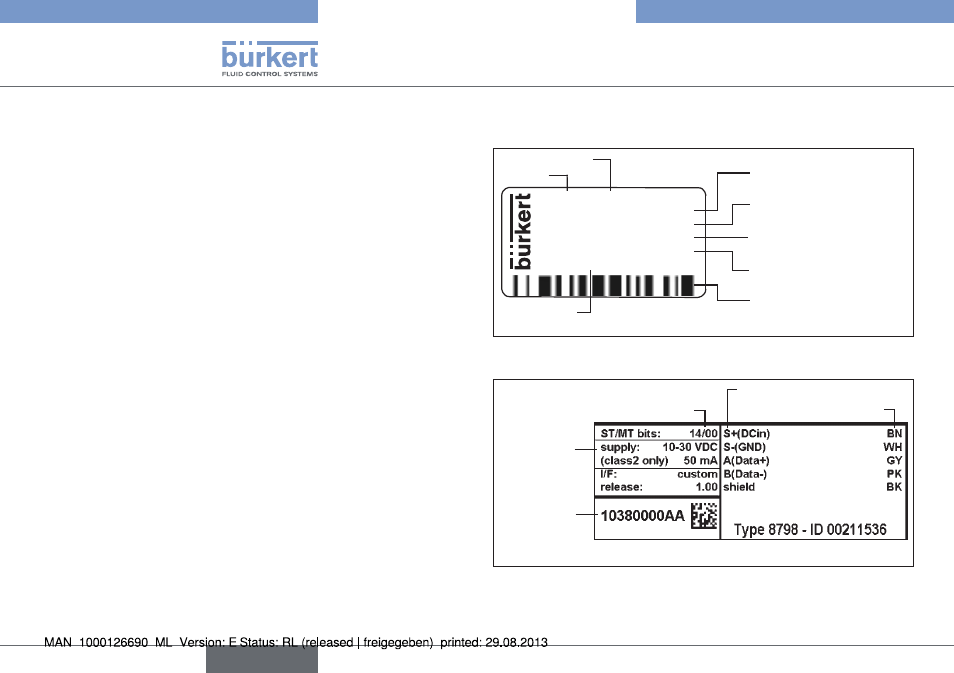

6.6. rating plate (example)
8798 digital
P = 0 ... 7 bar
24 V / DC IP65/IP67
Tamb -25°C - +80°C
S/N 001000
00177689
D-74653 Ingelfingen
W14UN
ce
Identification
number
Controller
Power supply - Protection
class
Type Pneumatic Controller
Bar code
Serial number, CE symbol
Max. ambient temperature
Fig. 3: Example of rating plate; linear Remote Sensor
Wire colors
Power
supply
Serial
number
Electrical configuration
Resolution
Fig. 4: Example of rating plate; rotating Remote Sensor
