Installation
8.3. installation of the rotating remote
sensor Type 8798
Danger!
risk of injury from high pressure in the equipment!
• Before dismounting pneumatic lines or valves, turn off the pres-
sure and vent the lines.
risk of injury due to electrical shock!
• Before reaching into the device or the equipment,
switch off the
power supply and secure to prevent reactivation!
• Observe applicable accident prevention and safety regulations
for electrical equipment!
Warning!
risk of injury from improper installation!
• Installation may be carried out by authorized technicians only
and with the appropriate tools!
risk of injury from unintentional activation of the system and
an uncontrolled restart!
• Secure system from unintentional activation.
• Following assembly, ensure a controlled restart.
8.3.1. Basic installation
Before attaching the rotating sensor to the respective actuator, it is
assembled as described in the following.

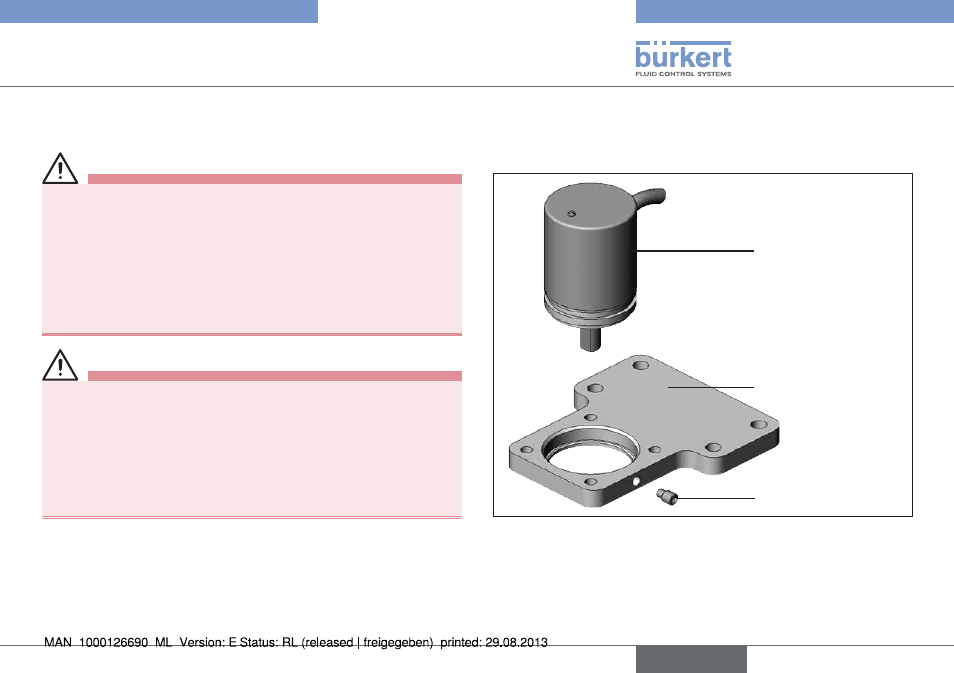

Support plate
Rotating
Remote Sensor
Setscrew
Fig. 19: Fit sensor on support plate
→
Insert the rotating Remote Sensor into the opening of the
support plate until it reaches the stop point.
→
Attach sensor with the lateral setscrew.
