Installation
Form seal
Control air connection
Caution:
Collets must not be fitted!

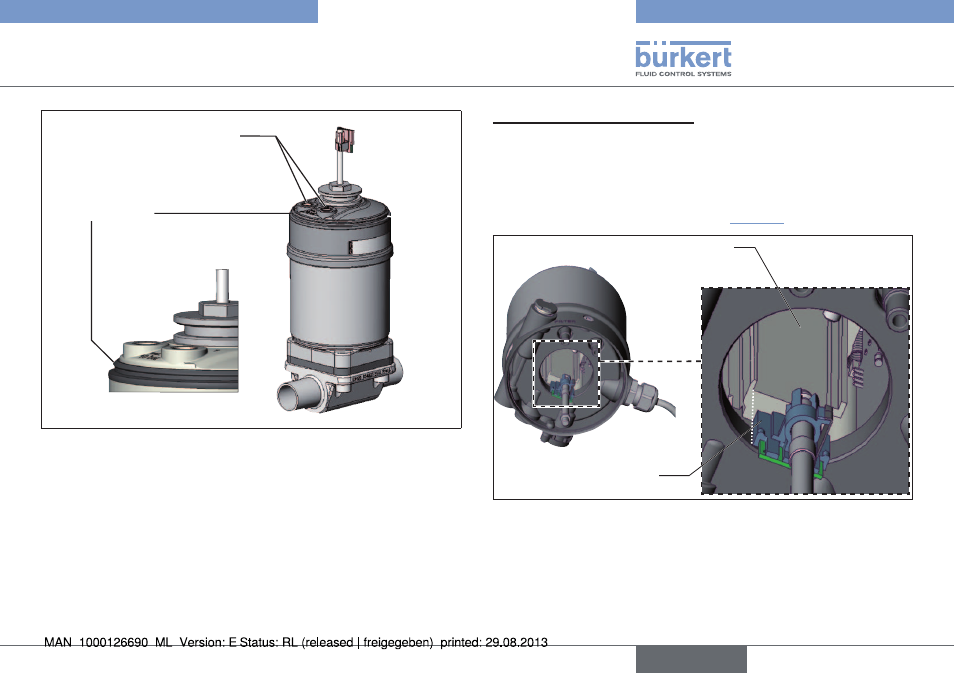

Fig. 9: Installation of the sealing rings, series 2103, 2300 and 2301
3. install linear remote sensor
→
Align the puck holder and the Remote Sensor in such a way that
1. the puck holder engages in the guide rail of the Remote
Sensor and
2. the supports of the Remote Sensor engage in the control air
connections of the actuator (cf “Fig. 11”)
Guide rail
Puck holder
Fig. 10: Aligning the puck holder
→
Push the Remote Sensor without turning it onto the actuator until
no gap is visible on the form seal.
