27
Installation
Legend:
no. name no. name
1 Mounting bracket 9 Hexagon bolt
5 Conical roller 10 Circlip
6 Lever 11 Washer

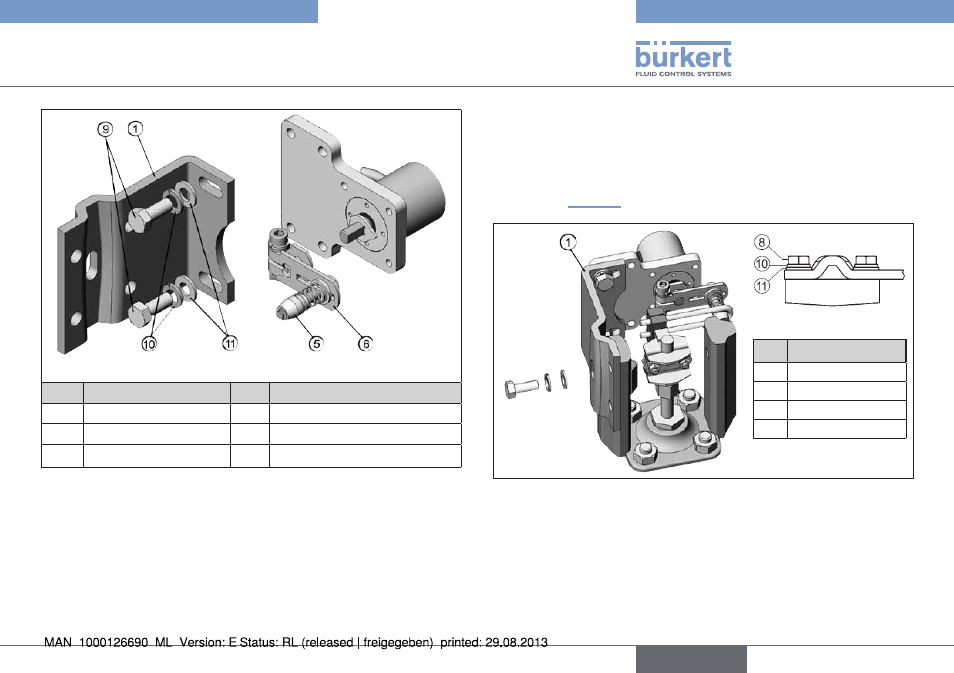

Fig. 27: Attachment to a proportional valve with push drives according to
NAMUR
attaching the rotating remote sensor with mounting bracket
for push actuators with cast frame:
→
Attach mounting bracket
①
to cast frame with one or several
hexagon bolts
⑧
, circlips
⑩
and washers
⑪
(refer to “Fig. 28” ).
Legend:
no. name
1 Mounting bracket
8 Hexagon bolt
10 Circlip
11 Washer
Fig. 28: Fit mounting bracket to cast frame
English
Type 8798
