16
Installation
note!
too high torque when screwing in the fastening screw does
not ensure protection class ip65 / ip67!
• The fastening screws may be tightened to a maximum torque
of 0.5 Nm only.
→
Attach the Remote Sensor to the actuator using the two side
fastening screws. In doing so, tighten the screws only hand-tight
(max. torque: 0.5 Nm).
Supports
Control air
connection
Fastening screws
max. 0.5 Nm

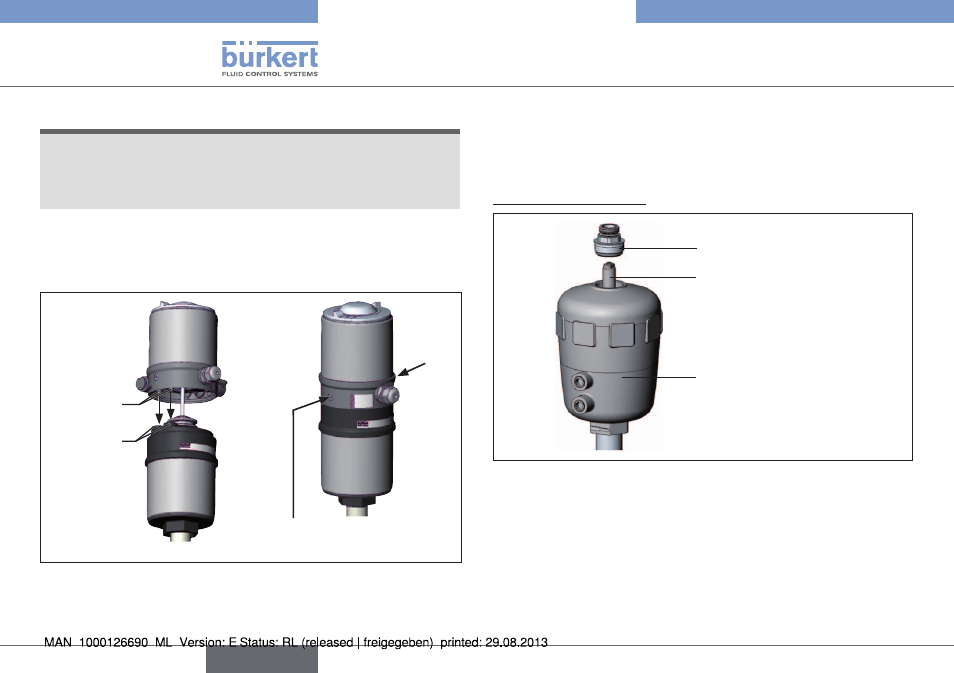

Fig. 11: Installation of linear Remote Sensor, series 2103, 2300 and 2301
8.2.2. attachment to process valves to
series 26xx and 27xx
Procedure:
1. install switch spindle
Guide piece
Spindle extension
Actuator
Fig. 12: Installing the switch spindle, series 26xx and 27xx-1
→
Unscrew the already fitted guide piece from the actuator
(if present).
→
Remove intermediate ring (if present).
→
Press the O-ring downwards into the cover of the actuator.
English
Type 8798
