29
Fluid Installation
9.4. pneumatic connection
9.4.1. pneumatic connection of the remote
sensor with internal air supply (Type
2103, 2300 and 2301)
Danger!
risk of injury from high pressure!
• Before dismounting pneumatic lines and valves, turn off the
pressure and vent the lines.
Connection
label: 1 Connection
“Blanked off
internally,
not used” Connection
label: 3
1

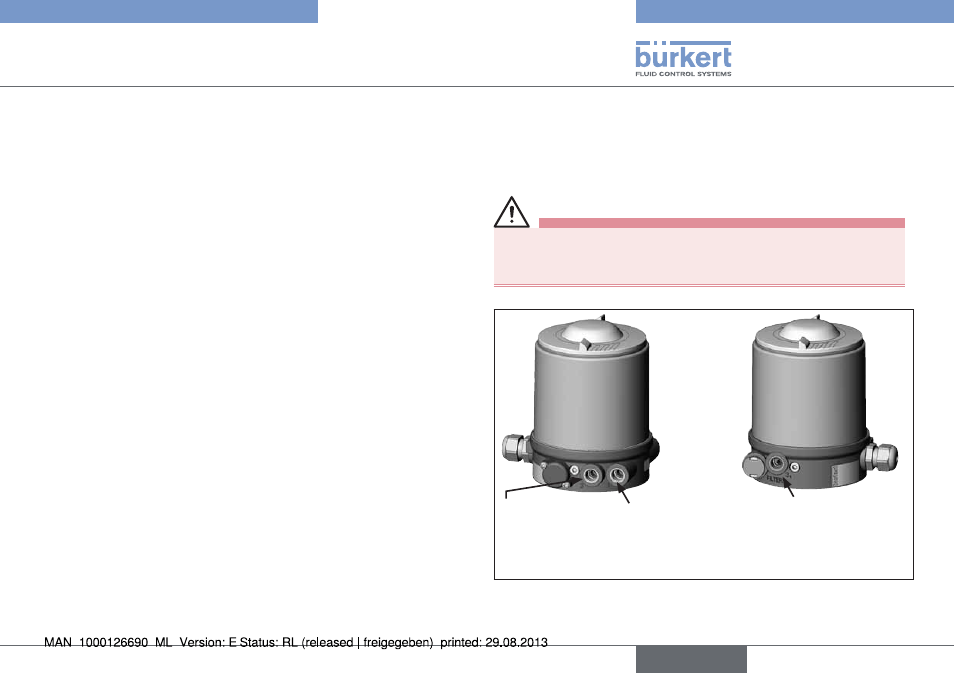

Fig. 30: Pneumatic connection with internal air supply
9.2. installing the process Valve
Thread type and dimensions can be found in the corresponding data
sheet.
→
Connect the valve according to the operating instructions for the
valve.
9.3. installation of position controller
Type 8791, Type 8792/8793
→
Connect the position controller according to the operating
instructions of Type 8791 or Type 8792/8793.
English
Type 8798
