Franklin Fueling Systems TS-LLD Installation Manual User Manual
Page 28
11)
Tighten the MI cable compression fitting with a 7/8 inch wrench. Be careful
not to overtighten the compression fitting –
avoid MI cable twisting / bending
damage and failures
– torque to 25 lbs/ft. Reference
Figure 2.2-11, or 2.2-12.
12) Recommended for Red Jacket installations:
inspect and replace the check valve
under the functional element – IF – it doesn’t have a stainless steel stem.
Use
Red Jacket replacement part number: 144-184-5.
13) Finally, inspect the MI Cable at the LSU (Leak Sensing Unit) for damage, twists,
kinks, or breaks —
a LSU that has a damaged MI Cable is unusable and must be
replaced before power is applied.
Install a new LSU if the MI Cable is damaged.

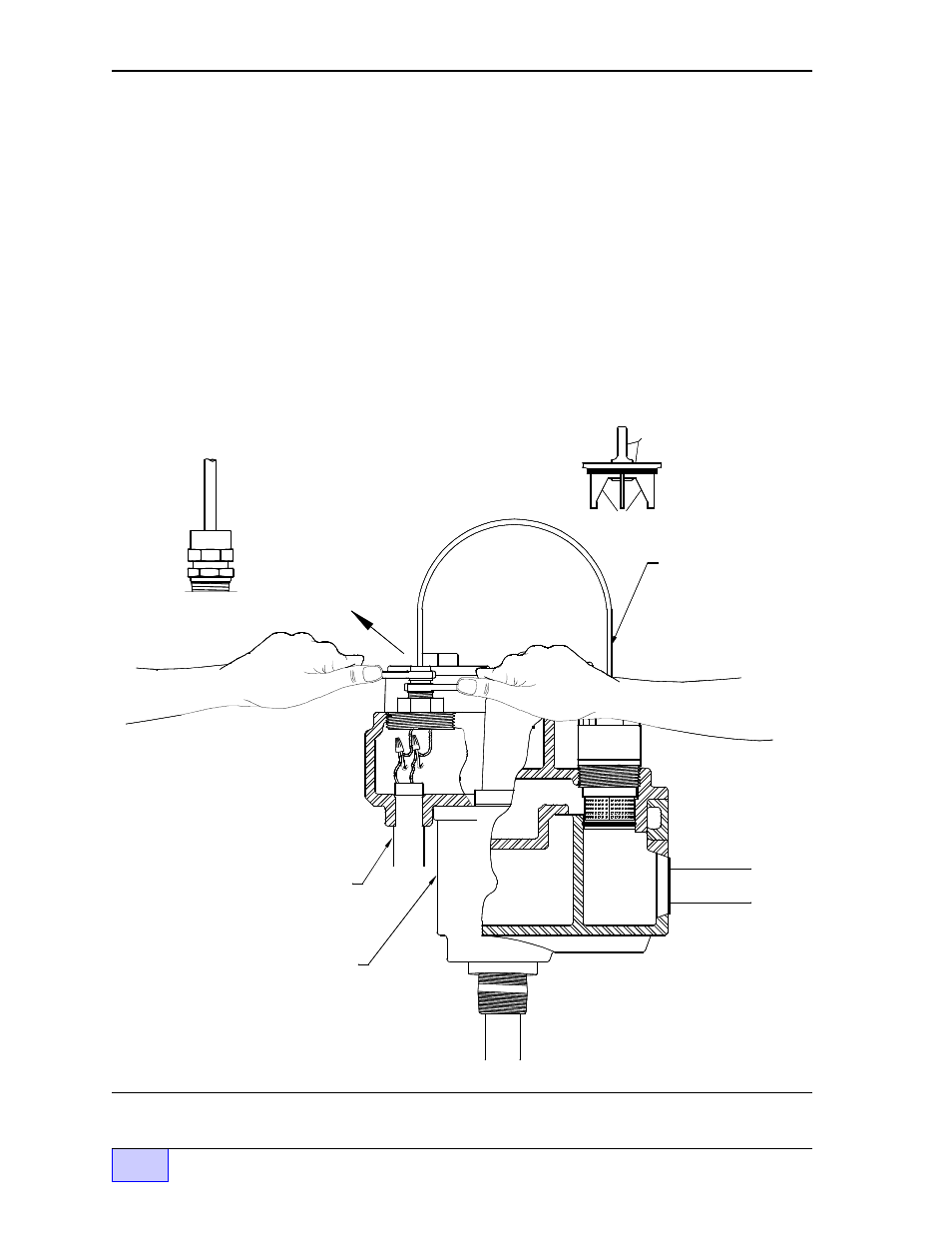

Figure 2.2-11 Tightening MI Cable Adapter Compression Fitting – RedJacket
M I C ABL E
DETAIL A
M I Cable
Lower Junction Box /
Cable Adapter Fitting
Upper
Compression Fitting
Stainless
Steel
stem
Check V alve
Detail
Plastic
PUM P
HO USING
ST AT IO N
C O ND UIT
PIPEL INE
