Cu component location & function - 2, Control unit display - 2, Normal displays ( on steady / solid ) - 2 – Franklin Fueling Systems TS-LLD Installation Manual User Manual

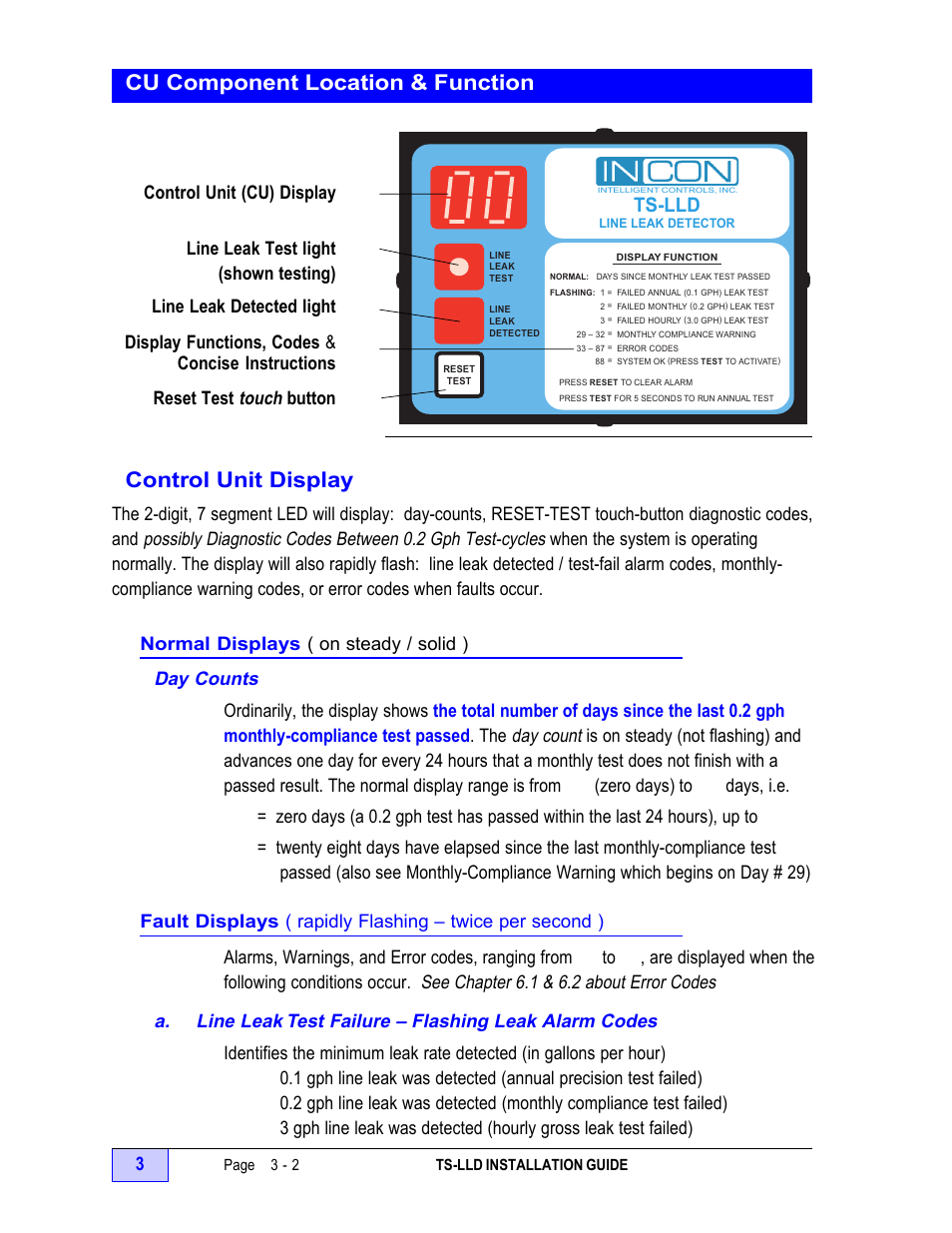

Page 58: Day counts - 2, Fault displays ( flashing on and off ) - 2, Figure 3-1, Control unit cover – component location - 2, Cu component location & function, Control unit display, Ts-lld
Cu component location & function - 2, Control unit display - 2, Normal displays ( on steady / solid ) - 2 | Day counts - 2, Fault displays ( flashing on and off ) - 2, Figure 3-1, Control unit cover – component location - 2, Cu component location & function, Control unit display, Ts-lld | Franklin Fueling Systems TS-LLD Installation Manual User Manual | Page 58 / 86 See also other documents in the category Franklin Fueling Systems Equipment:
