Final installation steps 2.3, Final installation steps - 14, Figure 2.3-13 control unit final assembly - 14 – Franklin Fueling Systems TS-LLD Installation Manual User Manual

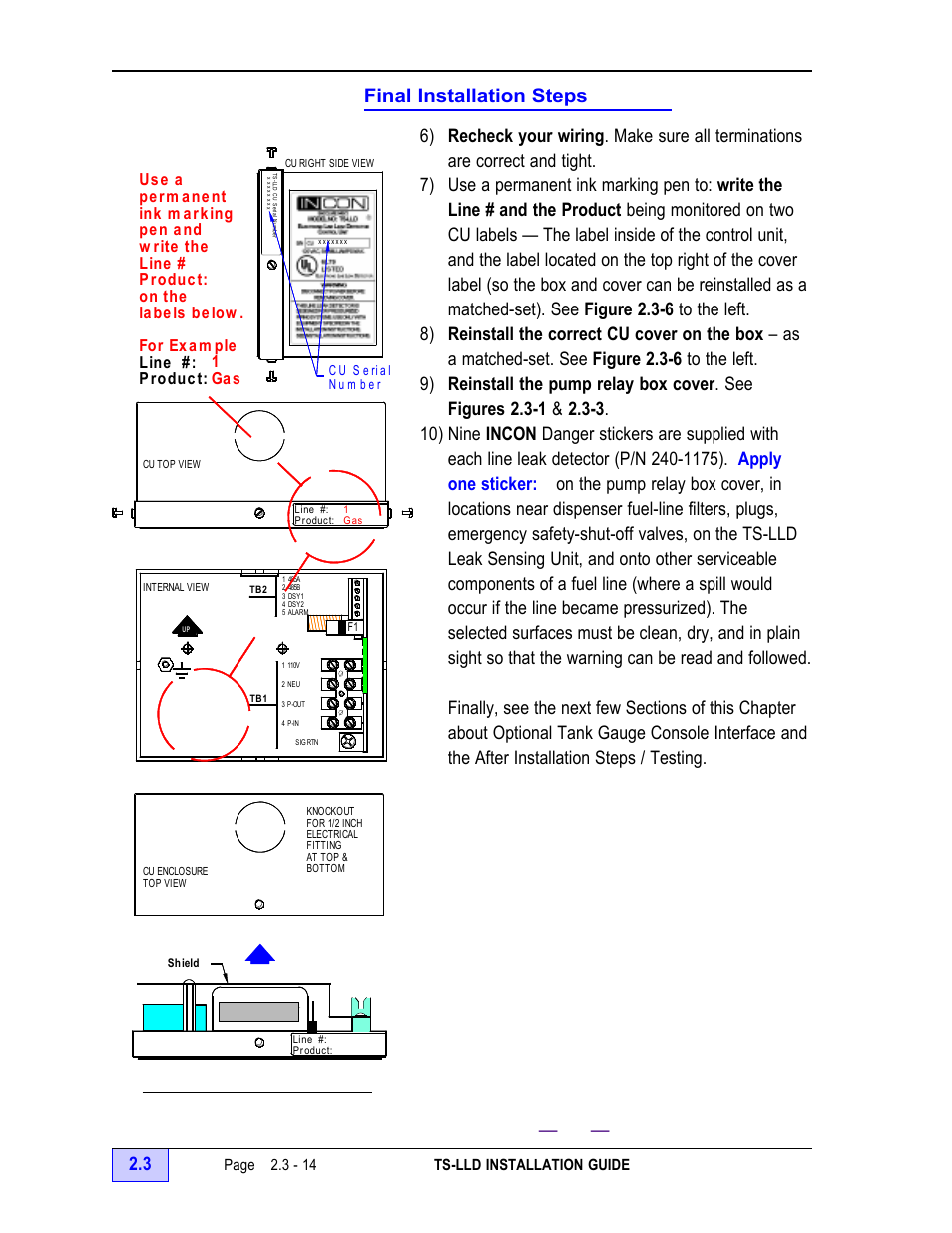

Page 48: Figure 2.3-13 control unit final assembly
