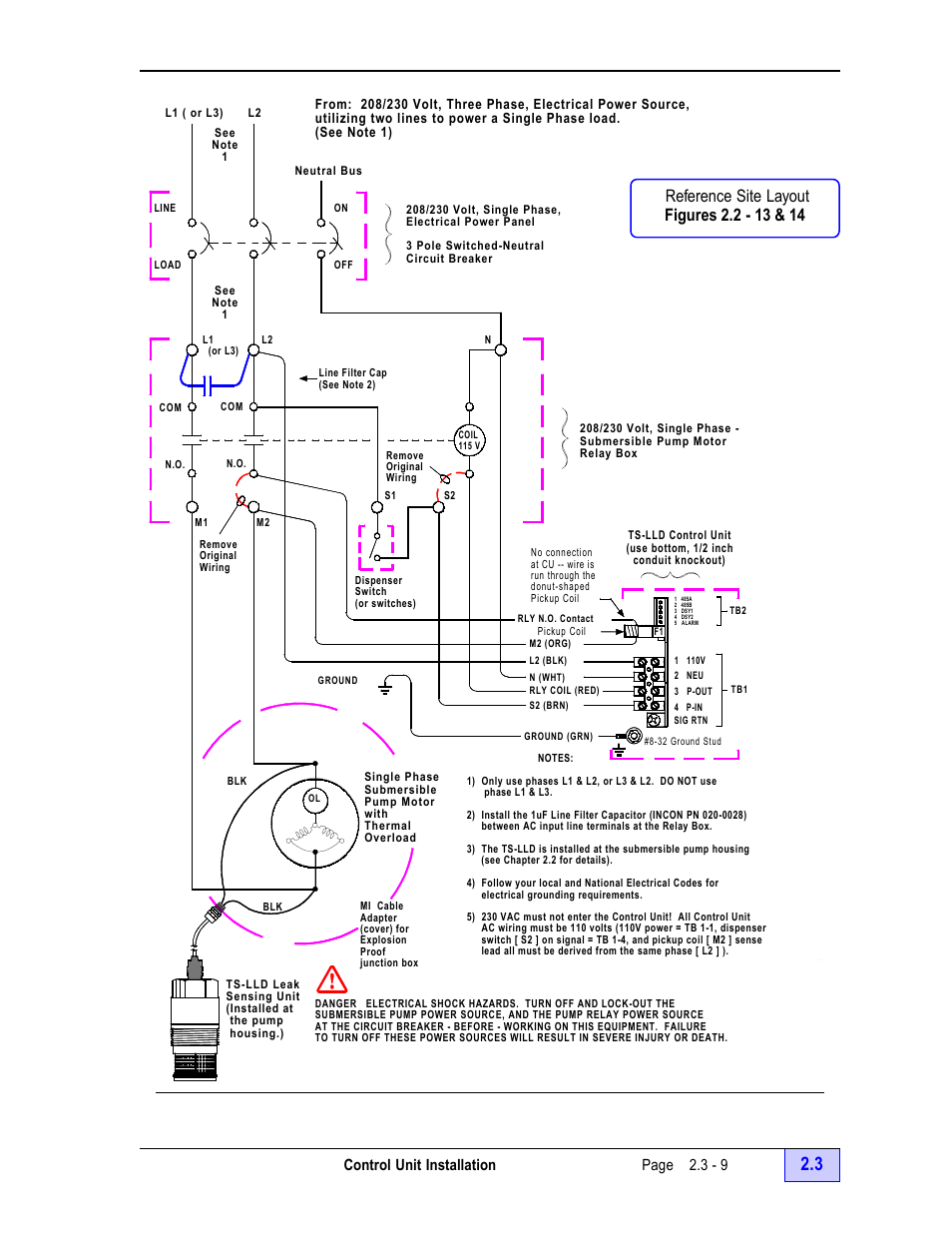

Interface schematic - 9, Reference schematic, Figure 2.3 - 8 – Franklin Fueling Systems TS-LLD Installation Manual User Manual
Page 43: Control unit installation page 2.3 - 9
