Test Pattern submenu
Several test patterns are available via this submenu to adjust the display device
for color, convergence, focus, resolution, contrast, grayscale, and aspect ratio. Use
either Adjust knob to select a test pattern. The available patterns are:
• Colorbars (8 color bars)
• X-Hatch (16 x 12 crosshatch)
• 4x4 X-Hatch (4 x 4 crosshatch)
• Grey Scale (grayscale)
• Ramp
• Alt. Pixels (alternating pixels)
• White Field
• Crop
• Side-By-Side (4 x 3 or 16 x 9 side by side crop)
• Quad Split (4 x 4 quad split crop)
• PIP Images (4 x 3 or 16 x 9 picture-in-picture images)
• 1.78 Aspect (film aspect ratio 1.78)
• 1.85 Aspect (film aspect ratio 1.85)
• 2.35 Aspect (film aspect ratio 2.35)
The default setting is Off.

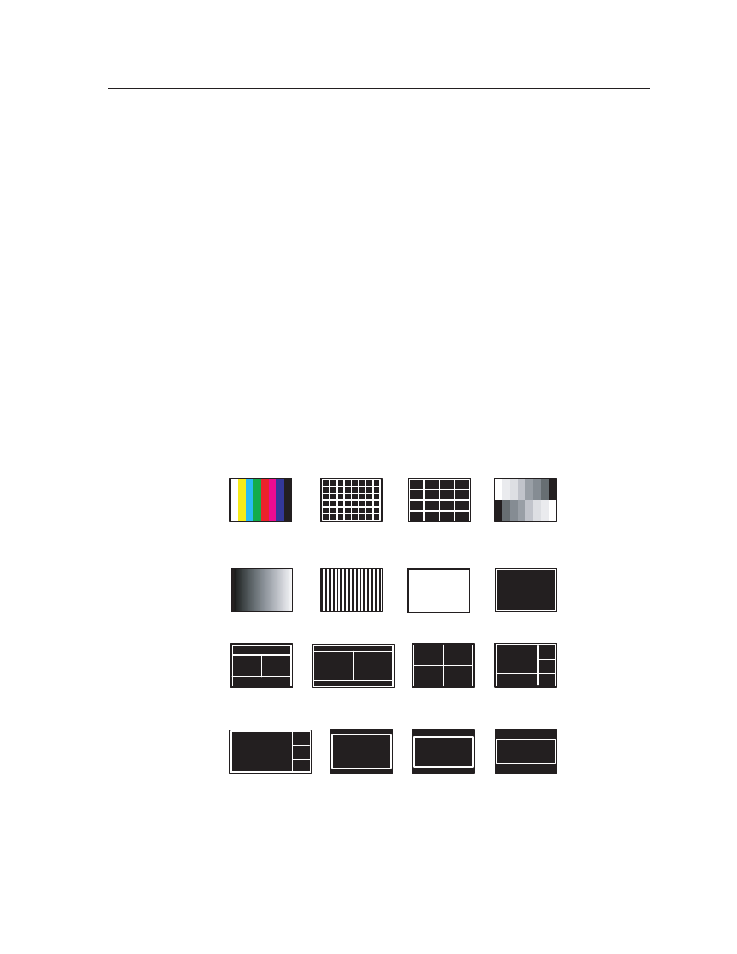

4x3
4x3
16
x
x9
16x9
Colorbars (8)
X-Hatch
(16x12)
4x4 X-Hatch
Grey Scale
Ramp
Alt. Pixels
Crop
Side-By-Side
(4x3 crop)
1.78 Aspect
1.85 Aspect
2.35 Aspect
Side-By-Side
(16x9 crop)
MGP 464 Test Patterns
White Field
Quad Split
4x3
4 x 3
4 x 3
4 x 3
PIP Images
(4x3)
16x9
4 x 3
4 x 3
4 x 3
PIP Images
(16x9)
Test patterns available for the MGP
N
On the MGP 462xi, all of the above test patterns are available except 4x4 Quad
Split, 4x3 PIP Images, and 16x9 PIP images.
