3-5 MGP Series • Operation
PRELIMINAR
Y
Power-up and Default Cycle
When you first plug the MGP into a power source, the LCD screen displays a series
of initial messages, followed by the default cycle of screens showing the current
input type for each window and the output resolution and refresh rate. These
messages continue to cycle on the LCD screen when the menu system is not in use.

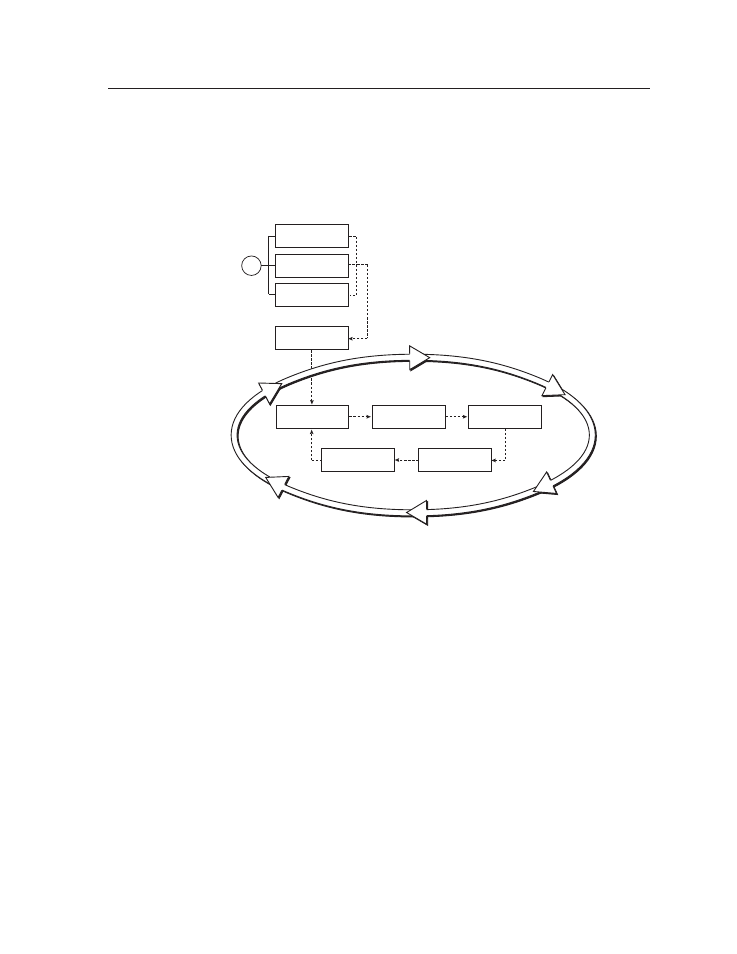

The following flow diagram shows the order in which these screens appear.
Default Cycle
Multi-Graphic
Processor
2 sec.
Window 1 DVI
000.0 kHz 000.0 Hz
Window 2 RGB
000.0 kHz 000.0 Hz 2 sec.
Output Rate
1280 x 1024 @ 60 Hz
2 sec.
Extron
MGP 4xx HD-SDI Vx.xx
Power
on
Extron
MGP 4xx DI Vx.xx
2 sec.
Window 3* RGB
000.0 kHz 000.0 Hz
2 sec.
Window 4* RGB
Freeze Enabled 2 sec.
2 sec.
Extron
MGP 4xx Vx.xx
*MGP 464 models only
Default cycle example
N From any menu or submenu, the MGP saves all adjustment settings and times
out to the default screens after 20 seconds of inactivity.
Window Select Buttons
The MGP front panel contains two (MGP 462xi) or four (MGP 464) Window Select
buttons. Use these buttons in conjunction with the Input buttons to specify which
window displays an input, or use them with the picture control buttons to specify
which window/image will be adjusted.
When you select a picture control, the window whose button was previously
selected is affected. (See “ Picture Controls ,” later in this chapter, for information on
the available controls.)
To select a window, press its Window Select button, which lights. To deselect a
window, press another Window Select button.
