Window Effect submenu
Use this submenu to select a transition effect for the MGP to use when muting and
unmuting windows. To select a transition effect,
1
. Press the Menu button repeatedly until Window Configuration is displayed
on the LCD screen.
2 . Press the Next button repeatedly until Window Effect is displayed.
3 . Rotate either the horizontal Adjust ( [ ) or the vertical Adjust knob ({) to
select a transition effect.

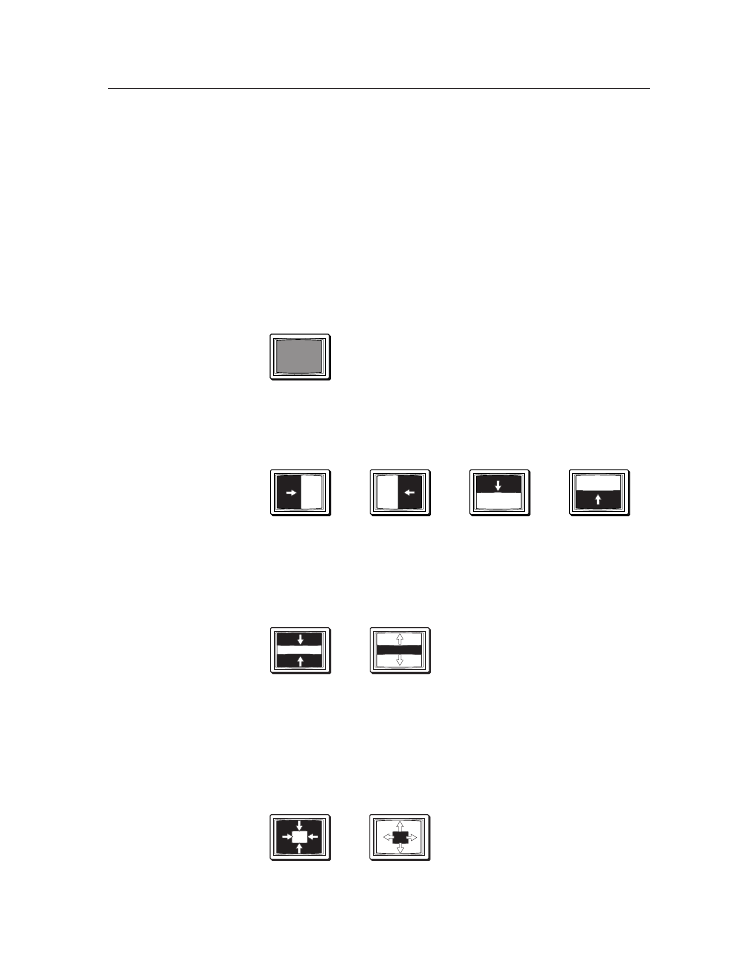

Available effects
Cut — A cut instantly mutes or unmutes the window. The effect duration does not
apply.
Dissolve — A dissolve causes the window to fade in or out.
Dissolve Dissolve
Standard wipe — A standard wipe causes the new window to appear to unroll
over the other one. The new window can roll from the top, bottom, left, or
right.
A standard wipe can have a soft (fuzzy) or a hard (sharp) leading edge.
Center wipe — A center wipe causes the new window to appear to unroll over the
other one in one of two ways:
• In from the top and bottom edges to the center of the window
• Out from the center to the top and bottom edges of the window
A center wipe can have a soft (fuzzy) or a hard (sharp) leading edge.
Square wipe — A square wipe causes the new window to appear to unroll over the
other one in one of two ways:
• In from the top, bottom, right, and left edges to the center of the
window
• Out from the center to the four edges of the window
This effect creates a square shaped transition.
A square wipe can have a soft (fuzzy) or a hard (sharp) leading edge.
