Installation, cont’d
MGP Series • Installation
2-8
PRELIMINAR
Y
f
Reset LED
— This LED, located to the upper-right of the reset button, blinks a
varying number of times to indicate which reset mode has been entered. See
” in chapter 3, “Operation”, for details.
g

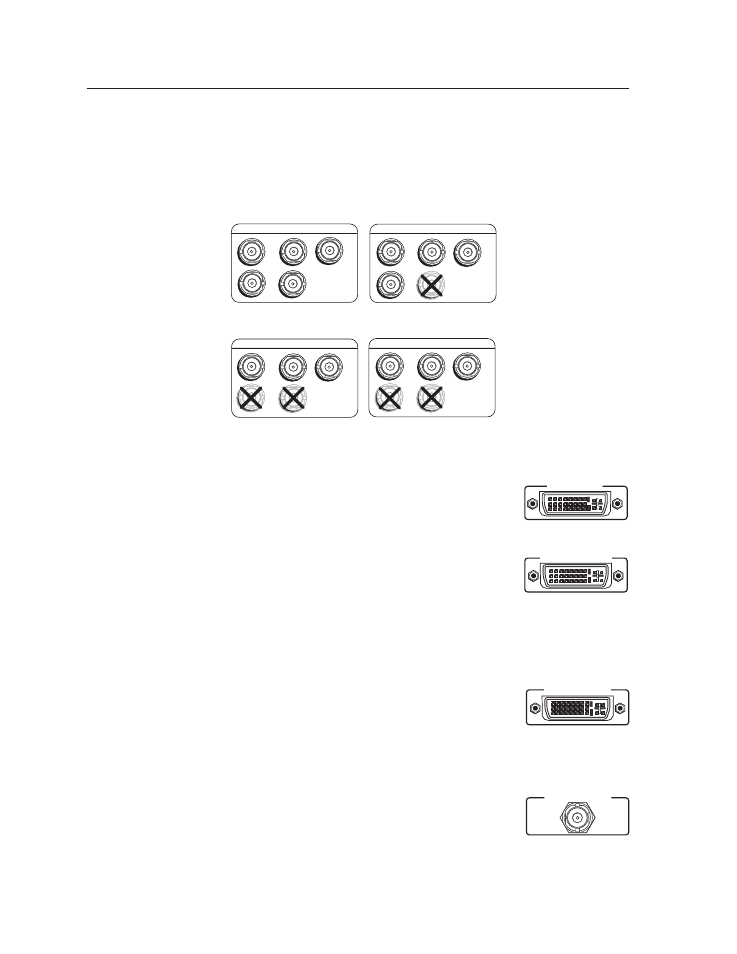

BNC output connectors — Plug an output device into these five BNC
connectors, as shown below.
R
/R-Y
G
/Y
B
/B-Y
H
/HV
V
RGBHV
R
/R-Y
G
/Y
B
/B-Y
H
/HV
V
RGBS
R
/R-Y
G
/Y
B
/B-Y
H
/HV
V
RGsB
R
/R-Y
G
/Y
B
/B-Y
H
/HV
V
HD YUV Component Video
Connecting to output BNC connectors
h
DVI output — Plug a DVI output device into this DVI-I connector.
N
Analog RGB is not available on this DVI connector.
N
When two output devices are attached (one to each
output connector), they both display the same image.
i
DVI background input — Connect a DVI input source to this DVI-I connector
in order to display the DVI video source live as a
background on your output screen. The four MGP
windows are displayed in front of this DVI image.
When a DVI background is used, the MGP output is
locked to the input rate of the DVI background. This input is not scaled.
N
This input connector can be used only to receive the background image. The
input is not scaled or processed. To process DVI input signals, use an MGP DI
or HD-SDI model.
j
DVI inputs — Connect up to four (MGP 464/462xi DI) or two
(MGP 464/462xi HD-SDI) DVI input sources to these
DVI input connectors, as an alternative to using the
fully-configurable BNC input connectors (
a
). These
inputs are available only on the MGP DI and HD-SDI
models, which have the DVI card installed.
N
Analog is not available on these DVI-I connectors.
k
HD-SDI inputs (MGP 464/462xi HD-SDI models only) — Connect one or
two HD-SDI inputs to these HD-SDI input connectors.
N
Standard definition SDI is not supported on these
HD-SDI inputs.
l
AC power connector — Connect the included power cord from this male IEC
connector to a 100–250 VAC, 50-60 Hz power source.
DVI-D OUTPUT
INPUT 1-DVI-D
INPUT 1-HD-SDI
DVI BACKGROUND
