Special Applications, cont’d
PRELIMINAR
Y
MGP Series • Special Applications 6-4
5 . Repeat step 4 for every input on the matrix switcher that will be displayed
on the output screen via the MGP, saving the settings for each input as Input
Preset 2, 3, etc.
N Each input preset must be saved with the same number as the input on the
matrix switcher.
6 . Synchronize the MGP to the matrix switcher as follows:
a
. Open the Windows-based control software.
b . From the Tools menu, select Sync MGP Device to Matrix Switcher... . The
Sync MGP to Matrix Switcher window opens.
c . In the IP Address field, enter the matrix switcher’s IP address.
d . Click Connect To Matrix button. The switcher’s matrix size is displayed
to the right of the button, and its input-output ties are displayed in the
Matrix Status section below.
e . From the drop-down menu in the MGP Input #1 field, select the number
of the matrix switcher output to which you connected the MGP’s input 1
in step 1.
f. Repeat step e for MGP inputs 2 through 4, making sure to select the
number of the switcher’s output connector to which you attached the
MGP input with which you are working.
g . Click Take to tie the MGP inputs to the selected switcher outputs.
h . Click Close to close the Sync MGP to Matrix Switcher window.

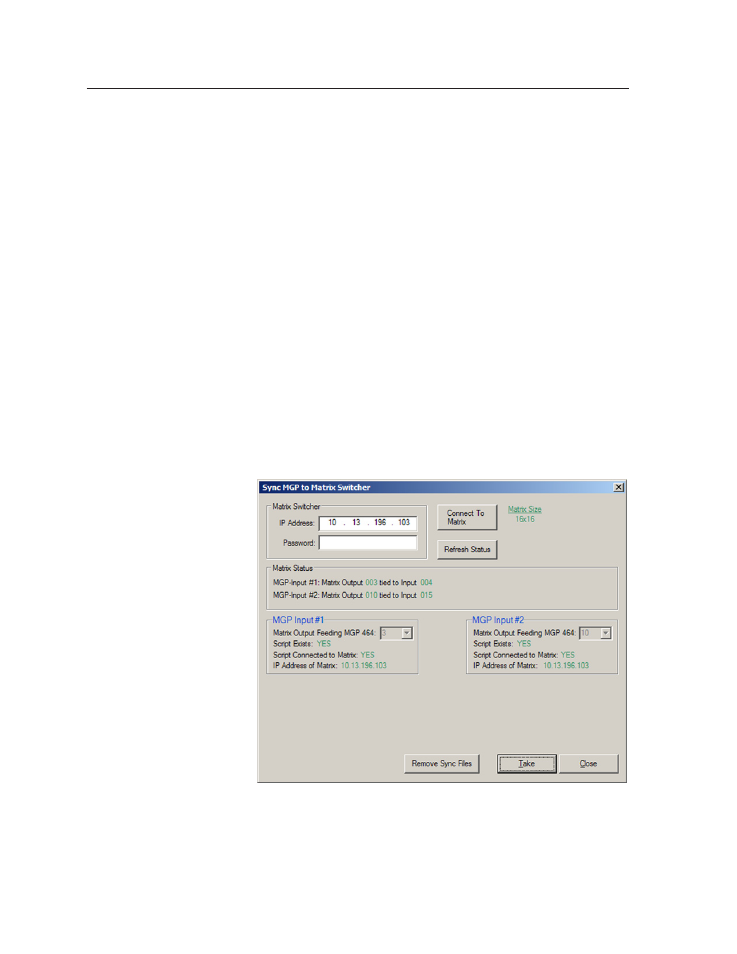

Example of a Sync MGP to Matrix Switcher window with input ties to
switcher (MGP 462xi)
