Using the Control Pages
The pages that you access by clicking the Control tab enable you to configure the
windows and images, select inputs, and manage window and input presets.
Picture Controls page
The Picture Controls page allows you to configure and control the MGP windows
and the images within them. You can also select the input for each window.

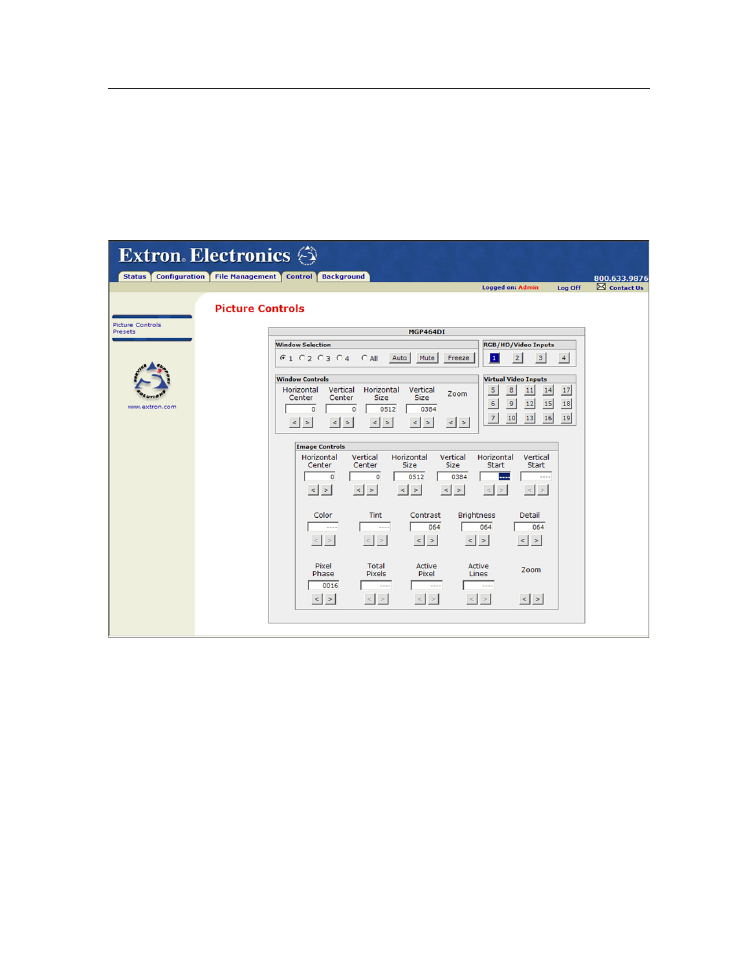

Picture Controls page
The Picture Controls page contains the following sections:
Window Selection
This section contains the following buttons:
Window radio buttons
— Select one of the radio buttons to specify the window(s)
to which the other selections on this page will apply. (The MGP 464 has four
of these radio buttons; the MGP 462xi has two.)
N
The All radio button cannot be used to make adjustments in the Window
Controls and the Image Controls section. These selections must be made for one
window at a time.
